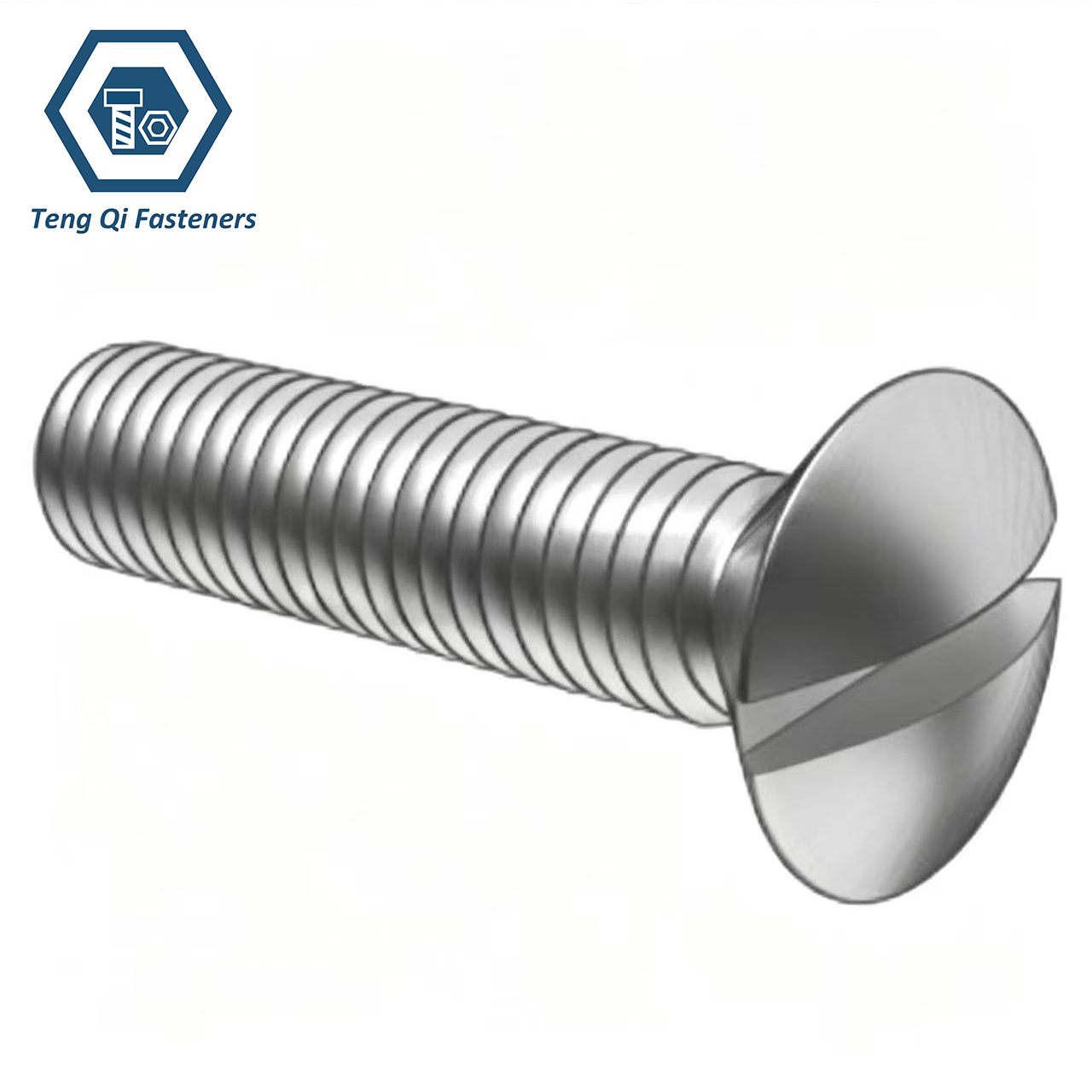

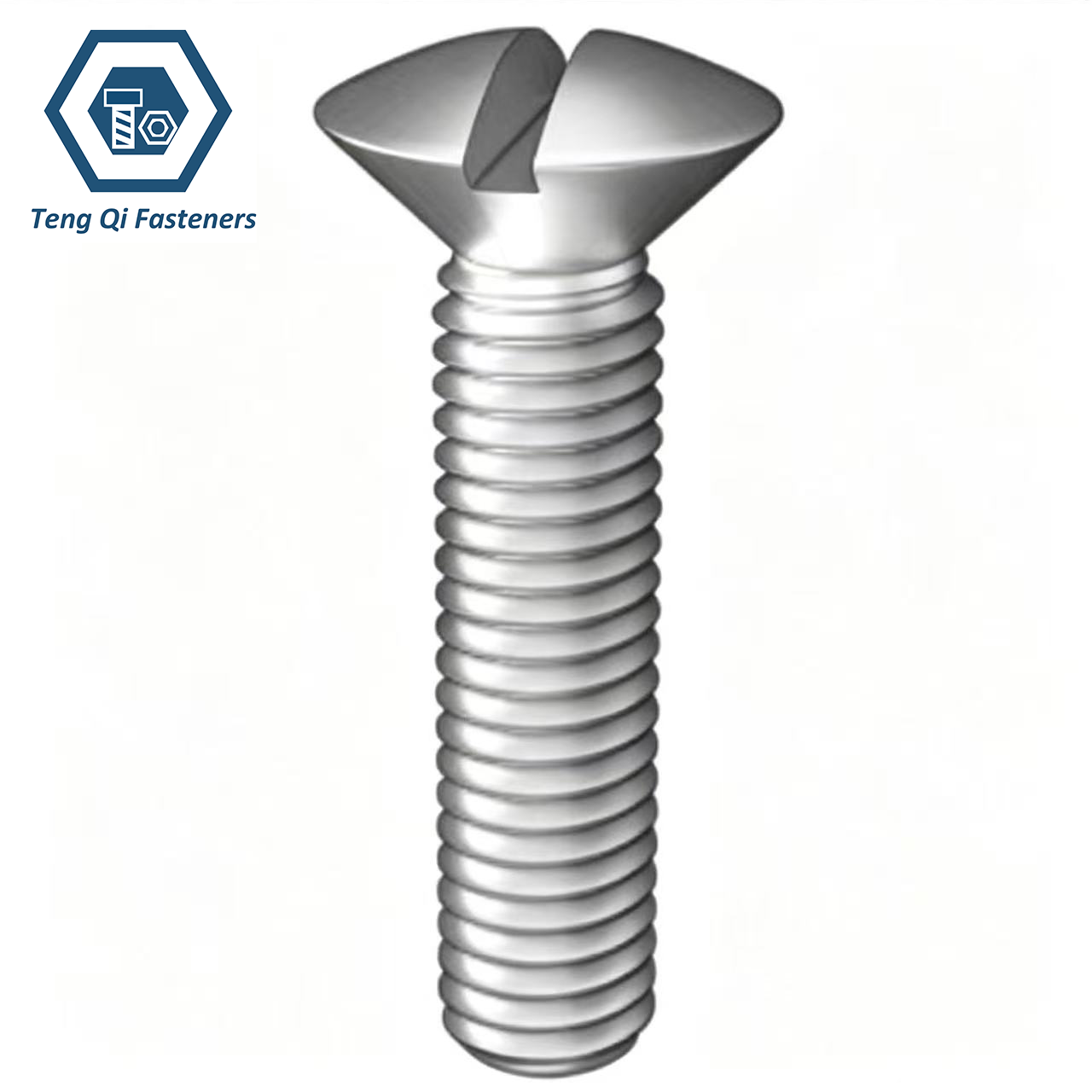

Stainless Steel DIN964 Slotted Raised Countersunk Head Screws Supplier In China
Ningbo Teng Qi Fasteners Co., Ltd. is a professional and reliable stainless steel DIN 964 Slotted Raised Countersunk Head Screws supplier and manufacturer, specializing in high-quality stainless steel fasteners for global customers. Our DIN 964 screws are available in A2 (304) and A4 (316) stainless steel, providing excellent corrosion resistance, strength, and long service life. With advanced production equipment and strict quality control procedures, we ensure every screw meets accurate dimensional requirements and delivers stable fastening performance.
With years of experience in stainless steel screw manufacturing, we provide both standard and customized DIN 964 Slotted Raised Countersunk Head Screws according to customers’ drawings, specifications, and application needs. Our products are widely used in machinery, electrical equipment, furniture, hardware, and other industrial fields. We are committed to supplying reliable fasteners with competitive pricing, consistent quality, and professional service to customers worldwide.
Specification:
DIN 964 Slotted Raised Countersunk Head Screws are precision-engineered fasteners featuring a raised countersunk head and traditional slotted drive design. They are manufactured according to DIN 964 standards and are available in a wide range of thread sizes, diameters, and lengths to meet different fastening requirements. The raised countersunk head provides a smooth and attractive finish, while the slotted drive allows easy installation using standard screwdrivers.
| Product name | Stainless Steel DIN 964 Slotted Raised Countersunk Head Screws |
|---|---|
| Thread Diameter: | M1-M10 |
| Material: | SS304 SS316 |
| Surface Treatment | Bright Pickling/Plain/Nylon Patch |
| Packaging: | Boxes/cartons into wooden pallets |

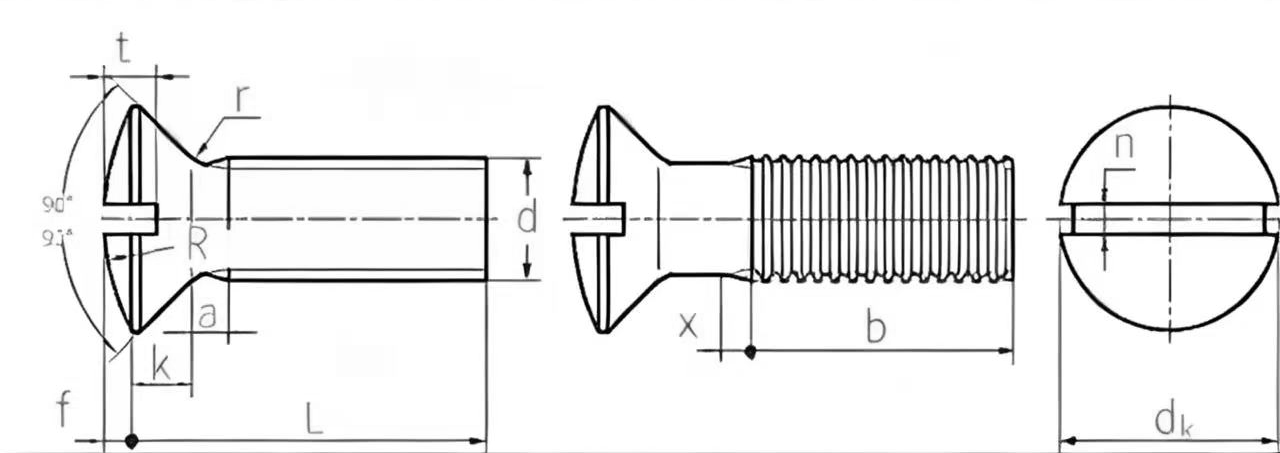

Dimension Chart of DIN964 Slotted Raised Countersunk Head Screws:
The dimension chart below shows the standard specifications of DIN 964 Slotted Raised Countersunk Head Screws, including thread diameter, pitch, head diameter, head height, and length options. These screws are designed with a raised countersunk head and slotted drive, providing a neat appearance and reliable fastening performance.
| Thread Size | M1 | M1.2 | M1.4 | M1.6 | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | |
| P | Pitch | 0.25 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| a | max | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 |
| dk | max=nominal size | 1.9 | 2.3 | 2.6 | 3 | 3.8 | 4.7 | 5.6 | 6.5 | 7.5 | 9.2 | 11 | 14.5 | 18 |
| min | 1.76 | 2.06 | 2.46 | 2.86 | 3.5 | 4.4 | 5.3 | 6.14 | 7.14 | 8.84 | 10.57 | 14.07 | 17.5 | |
| f | ≈ | 0.25 | 0.3 | 0.35 | 0.4 | 0.5 | 0.6 | 0.75 | 0.9 | 1 | 1.25 | 1.5 | 2 | 2.5 |
| k | max | 0.6 | 0.72 | 0.84 | 0.96 | 1.2 | 1.5 | 1.65 | 1.93 | 2.2 | 2.5 | 3 | 4 | 5 |
| n | nominal size | 0.25 | 0.3 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 0.8 | 1 | 1.2 | 1.6 | 2 | 2.5 |
| max | 0.45 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.2 | 1.51 | 1.91 | 2.31 | 2.81 | |
| min | 0.31 | 0.36 | 0.36 | 0.46 | 0.56 | 0.66 | 0.86 | 0.86 | 1.06 | 1.26 | 1.66 | 2.06 | 2.56 | |
| r | max | 0.1 | 0.12 | 0.14 | 0.16 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.5 | 0.6 | 0.8 | 1 |
| R | ≈ | 2 | 2.5 | 3 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
| t | max | 0.5 | 0.6 | 0.65 | 0.8 | 1 | 1.2 | 1.45 | 1.7 | 1.9 | 2.3 | 2.8 | 3.7 | 4.6 |
| min | 0.4 | 0.5 | 0.52 | 0.65 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.4 | 3.2 | 4 | |
| x | max | - | - | - | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 |
- RELATED SCREWS LISTS:
- Stainless Steel DIN7976 Hexagon Head Tapping Screws
- Stainless Steel DIN7982 Cross Recessed Countersunk Head Tapping Screws
- Stainless Steel DIN7983 Cross Recessed Raised Countersunk Head Tapping Screws
- Stainless Steel DIN7985 Cross Recessed Raised Cheese Head Screws
- DIN7964E Stainless Steel Socket Head Cap Captive Screw
- Stainless Steel DIN966 Cross Recessed Raised Countersunk Head Screws
- Stainless Steel DIN967 Cross Recessed Pan Head Screws with Collar
- Stainless Steel DIN968 Cross Recessed Pan Head Tapping Screws with Collar
- GB830 Stainless Steel Slotted Cheese Head Screws with Shoulder
- Stainless Steel GB831 Slotted Shoulder Screws
- Stainless Steel GB834 Knurled Thumb Screws
- Stainless Steel GB835 Knurled Screws
- Stainless Steel GB836Knurled Screws with Small Head
- Stainless Steel GB837 Slotted Pan Head Screws with Waisted Shank
- Stainless Steel GB839 Knurled Thumb Captive Screws with Waisted Shank
- Nickel Plated Smooth Shank Single Shoulder Shelf Support Screw
- Nickel Plated Furniture Shelf Peg with Matching Knurled Nut
Application of Stainless Steel DIN964 Slotted Raised Countersunk Head Screws:
DIN 964 Slotted Raised Countersunk Head Screws are widely used in applications where a clean appearance and reliable fastening are required. The raised countersunk head provides a decorative finish while allowing the screw to sit securely on the surface. With stainless steel options such as A2 (304) and A4 (316), these screws offer excellent corrosion resistance and are suitable for both indoor and outdoor environments.
| Application | Details |
|---|---|
| Mechanical Equipment | Used for assembling machine components, covers, panels, and precision parts where a neat surface finish is needed. |
| Electrical and Electronic Equipment | Suitable for fastening housings, control panels, and electrical components due to their corrosion resistance and compact design. |
| Furniture and Hardware | Commonly used in furniture assembly, fittings, and decorative hardware where appearance is important. |
| Automotive Applications | Used for interior parts, trim components, and non-critical assemblies requiring secure fastening. |
| Construction and Building Hardware | Applied in general installation work, fixtures, and equipment assembly. |
| Marine and Outdoor Equipment | Stainless steel DIN 964 screws are ideal for humid or corrosive environments, especially when manufactured from A4 (316) stainless steel. |
