Italian Standard UNI5587 Thick Hex Nuts Manufacturer In China
Ningbo Teng Qi Fasteners is a professional manufacturer of UNI 5587 Italian Standard nuts with more than 10 years of production experience. We have professional equipment and technology and are committed to providing customers with high-quality products. Our nut sizes range from M3 to M80 to meet the different needs of our customers. In terms of quality control, we strictly implement the inspection process of each production link to ensure stable and reliable product quality. From raw material procurement to final product inspection, we adhere to strict quality standards to ensure that every nut meets the highest quality requirements. Our professional team and engineers strive for excellence to ensure that every nut can meet customer expectations and win their trust.
In addition to focusing on product quality, we also focus on providing customers with competitive prices. While we strive for excellence, we also understand how important price is in today’s market. With our experience and efficient production processes, we are able to offer products at competitive prices without compromising product quality. We are committed to building long-term relationships with our customers and earning their trust and support by providing quality products at affordable and reliable prices. Therefore, customers not only rely on the quality of our products, but also on the price advantage and reliability we provide.
Specification of UNI5587 Thick Hex Nuts:
The specification of UNI5587 Thick Hex Nuts include the following details:
| Product name | UNI5587 Thick Hex Nuts |
|---|---|
| Thread Diameter: | M3-M80 |
| Grade: | ISO898-2 Class5/8/10/12 |
| Material: | Steel: Q195, Q235,C45,40CR,35CRMO,42CRMO Stainless Steel: SS304/SS316 |
| Surface Treatment | Zinc Plated/Plain/Black Oxidation/HDG/Dacromet |
| Packaging: | Boxes/cartons into wooden pallets |

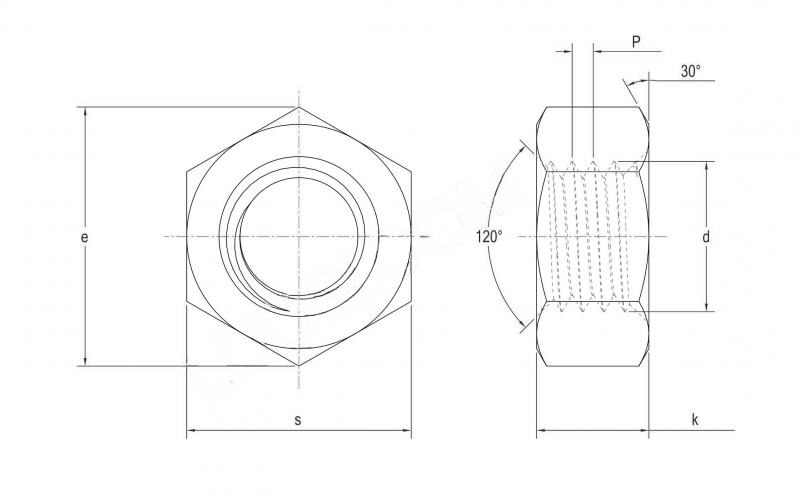

Dimension Chart of Italian Standard UNI5587 Thick Hex Nuts:
| Thread Diameter | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 |
| P | 0.5 | 0.7 | 0.8 | 1 | 1|1.25 | 1.25|1.5 | 1.25|1.75 | 1.5|2 | 1.5|2 | 1.5|2.5 | 1.5|2.5 | 1.5|2.5 | 2|3 | 2|3 | 2|3.5 |
| e min | 6.08 | 7.74 | 8.87 | 11.05 | 14.39 | 18.9 | 21.1 | 24.49 | 26.75 | 30.14 | 33.53 | 35.72 | 39.98 | 45.63 | 51.28 |
| k max | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 27 | 30 |
| k min | 2.75 | 3.7 | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | 21.48 | 23.48 | 26.48 | 29.48 |
| s max | 5.5 | 7 | 8 | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 45 |
| s min | 5.38 | 6.85 | 7.85 | 9.78 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.67 | 29.67 | 31.61 | 35.38 | 40.38 | 44.38 |
| Thread Diameter | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | M56 | M60 | M64 | M68 | M72 | M76 | M80 |
| P | 2|3.5 | 2|3.5 | 3|4 | 3|4 | 3|4.5 | 3|4.5 | 3|5 | 3|5 | 4|5.5 | 4|5.5 | 4|6 | 4|6 | 6 | 6 | 6 |
| e min | 51.28 | 55.8 | 61.31 | 66.96 | 75.61 | 78.26 | 83.91 | 89.56 | 95.07 | 100.72 | 106.37 | 112.02 | 117.67 | 123.32 | 128.97 |
| k max | 30 | 33 | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 64 | 68 | 72 | 76 | 80 |
| k min | 29.48 | 32.38 | 35.38 | 38.38 | 41.38 | 44.38 | 47.38 | 51.26 | 55.26 | 59.26 | 63.26 | 67.26 | 71.26 | 75.26 | 79.26 |
| s max | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 |
| s min | 44.38 | 49.38 | 54.26 | 59.26 | 64.26 | 69.26 | 74.26 | 79.26 | 84.13 | 89.13 | 94.13 | 99.13 | 104.13 | 109.13 | 114.13 |
- RELATED NUT LISTS:
- DIN6334 Hexagon Coupling Nuts
- ASME/ANSI B 18.2.2 Hex Slotted Nuts/Castle Nuts
- ASME/ANSI B18.2.2 Hex Flange Nuts
- Lock Nuts
- IFI145 Flange Nuts
- DIN982 Nylon Lock Nuts
- DIN985 Nylon Lock Nuts
- ASME B 18.16.6 Nylon Nuts
- HEX NUT
- JIS 1186 Hex Nuts
- DIN934 Hex Nuts
- A194 Hex Nuts
- A563 Hex Nuts
- DIN6915 Hex Nuts
- GOST 28919 Thick Hex Nuts
- GOST R 52645 Structural Hex Nuts
- GOST 5915 Hex Nut
- UNI5588 Hex Nuts
- UNI5713 Hex Nuts
- AS1252 Hex Nuts
- AS/NZS 2451 Hex Nuts
- AS/NZS 2465 Hex Nuts
- AS 1112.1 Hex Nut
- DIN6330 Hex Thick Nuts
- ASME/ANSI B 18.2.2 Hex Thick Nuts
Application of UNI5587 Thick Hex Nuts:
UNI 5587 thick hexagon nuts are used in a wide range of applications, including:
| Application | Details |
|---|---|
| Mechanical Manufacturing Industry: | The UNI 5587 thick hex nut is extensively used in the mechanical manufacturing industry for securing components of various machinery, such as lathes, milling machines, and punching machines. They ensure stable connections of machinery components, thereby enhancing equipment performance and reliability. |
| Construction Industry: | In the construction sector, the UNI 5587 thick hex nut is utilized for securing structural components such as steel structures, bridges, stairs, and handrails. They provide reliable connections, ensuring the structural integrity and safety of buildings. |
| Electronics Equipment: | The UNI 5587 thick hex nut is also commonly used in the manufacturing and maintenance of electronic equipment for fastening electronic components, control panels, enclosures, and other parts. They ensure stable operation and safety of electronic equipment. |
