Stainless Steel DIN967 Cross Recessed Pan Head Screws with Collar Supplier In China
Ningbo Teng Qi Fasteners Co., Ltd. is a reliable supplier and manufacturer of Stainless Steel DIN967 Cross Recessed Pan Head Screws with Collar, providing high-quality fastening solutions for customers worldwide. With extensive experience in stainless steel fastener production, we specialize in manufacturing screws according to DIN standards with precise dimensions, stable quality, and excellent corrosion resistance. Our DIN967 screws are available in stainless steel grades such as A2 (304) and A4 (316), offering outstanding durability and performance for various industrial applications.
With advanced production equipment and strict quality control systems, we ensure every screw meets customer requirements in terms of strength, appearance, and dimensional accuracy. Our Stainless Steel DIN967 Pan Head Screws with Collar are widely used in automotive, electronics, machinery, electrical equipment, appliances, and metal fabrication industries. We can also provide customized sizes, materials, and surface finishes to meet specific application needs, making us a trusted partner for global customers seeking reliable stainless steel fastening solutions.
Specification:
DIN 967 Cross Recessed Pan Head Screws with Collar are metric machine screws designed with a pan head, cross recess drive, and an integrated collar (shoulder) under the head. The collar provides a larger bearing surface, helping to improve load distribution and fastening stability while reducing the risk of damage to the mounting material. These screws are manufactured according to DIN 967 specifications and are commonly available in thread sizes from M2 to M8 with various lengths to suit different assembly requirements.
| Product name | Stainless Steel DDIN 967 Cross Recessed Pan Head Screws |
|---|---|
| Thread Diameter: | M3-M8 |
| Material: | SS304 SS316 |
| Surface Treatment | Bright Pickling/Plain/Nylon Patch |
| Packaging: | Boxes/cartons into wooden pallets |

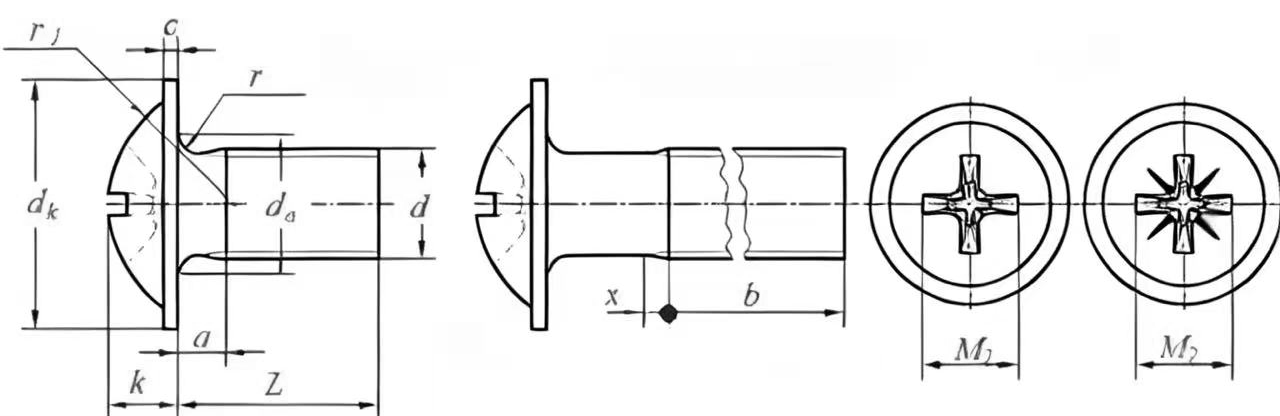

Dimension Chart of DIN967 Cross Recessed Pan Head Screws with Collar:
| Screw Thread | M3 | (M3.5) | M4 | M5 | M6 | M8 | ||
| P | Pitch | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | |
| a | max | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | |
| da | max | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 | |
| dk | max=nominal size | 7.5 | 9 | 10 | 11.5 | 14.5 | 19 | |
| min | 6.92 | 8.42 | 9.42 | 10.8 | 13.8 | 18.16 | ||
| k | max=nominal size | 2.35 | 2.6 | 3.05 | 3.55 | 4.55 | 5.9 | |
| min | 2.1 | 2.35 | 2.75 | 3.25 | 4.25 | 5.6 | ||
| c | max | 0.8 | 0.9 | 1.1 | 1.35 | 1.8 | 2.2 | |
| min | 0.6 | 0.7 | 0.9 | 1.05 | 1.4 | 1.8 | ||
| r | min | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | |
| r1 | ≈ | 3.8 | 4.6 | 5.8 | 6.6 | 8.2 | 11 | |
| x | max | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | |
| Socket No. | 1 | 2 | 2 | 2 | 3 | 4 | ||
| M1 | Form H | Ref. | 3 | 4.2 | 4.6 | 5 | 7.1 | 9 |
| Penetration depth | Form H | min | 1.35 | 1.4 | 1.8 | 2.26 | 3 | 4.18 |
| Penetration depth | max | 1.8 | 2.03 | 2.46 | 2.87 | 3.66 | 4.68 | |
| M2 | Form Z | Ref. | 2.9 | 3.9 | 4.3 | 4.7 | 6.7 | 8.8 |
| Penetration depth | Form Z | min | 1.58 | 1.47 | 1.88 | 2.28 | 3.02 | 4.06 |
| Penetration depth | max | 1.83 | 1.93 | 2.34 | 2.74 | 3.48 | 4.52 | |
- RELATED SCREWS LISTS:
- Stainless Steel DIN7976 Hexagon Head Tapping Screws
- Stainless Steel DIN7982 Cross Recessed Countersunk Head Tapping Screws
- Stainless Steel DIN7983 Cross Recessed Raised Countersunk Head Tapping Screws
- Stainless Steel DIN7985 Cross Recessed Raised Cheese Head Screws
- DIN7964E Stainless Steel Socket Head Cap Captive Screw
- Stainless Steel DIN964 Slotted Raised Countersunk Head Screws
- Stainless Steel DIN966 Cross Recessed Raised Countersunk Head Screws
- Stainless Steel DIN968 Cross Recessed Pan Head Tapping Screws with Collar
- GB830 Stainless Steel Slotted Cheese Head Screws with Shoulder
- Stainless Steel GB831 Slotted Shoulder Screws
- Stainless Steel GB834 Knurled Thumb Screws
- Stainless Steel GB835 Knurled Screws
- Stainless Steel GB836Knurled Screws with Small Head
- Stainless Steel GB837 Slotted Pan Head Screws with Waisted Shank
- Stainless Steel GB839 Knurled Thumb Captive Screws with Waisted Shank
- Nickel Plated Smooth Shank Single Shoulder Shelf Support Screw
- Nickel Plated Furniture Shelf Peg with Matching Knurled Nut
Application of Stainless Steel DIN967 Cross Recessed Pan Head Screws with Collar:
Stainless Steel DIN 967 Cross Recessed Pan Head Screws with Collar are widely used in various industries where secure fastening, corrosion resistance, and a neat appearance are required. The collar under the head provides a larger contact area, improving stability and making them suitable for fastening thin materials and precision components.
| Application | Details |
|---|---|
| Automotive Industry | Used for fastening interior components, electrical parts, brackets, panels, and trim parts where vibration resistance and corrosion protection are important. |
| Electrical and Electronic Equipment | Suitable for assembling control cabinets, circuit boards, electronic housings, switches, and other precision equipment requiring reliable fastening. |
| Household Appliances | Commonly used in washing machines, refrigerators, air conditioners, and kitchen appliances due to their clean appearance and resistance to rust. |
| Machinery and Industrial Equipment | Applied in mechanical assemblies, equipment covers, protective panels, and metal components where stable connections are required. |
| Metal Fabrication and Sheet Metal Assembly | Ideal for fastening thin metal sheets, enclosures, and brackets because the collar helps distribute clamping force and prevents surface damage. |
| Construction and Building Equipment | Used in indoor and outdoor equipment installations where stainless steel corrosion resistance provides long-term durability. |
| Marine and Outdoor Applications | Stainless steel DIN 967 screws are suitable for humid, coastal, and outdoor environments due to their excellent resistance to corrosion and oxidation. |
| Furniture and Hardware Assembly | Used for assembling furniture fittings, decorative hardware, and components requiring both strength and an attractive finished appearance. |
