ASME/ANSI B18.2.2 American Standard Hex Slotted Nuts/Castle Nuts Manufacturer In China
Hex slotted nuts also known as castle nuts. As a professional ASME/ANSI B18.2.2 American Standard hex slot nut manufacturer, we are committed to providing high quality products and services. We have advanced cold heading machines, milling machines, thread tapping machines and other professional equipment, as well as an experienced technical team to ensure the dimensional accuracy and production efficiency of our products.
In terms of material selection, we strictly control and select high-quality carbon steel and stainless steel materials to ensure that the products have excellent strength, corrosion resistance and durability. After years of accumulation and practice, our heat treatment process ensures that the nuts reach the required hardness standards and that their load-bearing capacity meets industry standards and customer requirements.
Slotted nuts are also available in a variety of surface treatment options, including blackened, galvanized and hot-dip galvanized, to meet customer needs in different environments and application scenarios. These surface treatments not only enhance the corrosion resistance of the product, but also enhance its aesthetics, providing customers with more choices.
We always adhere to customer-centeredness and provide customers with personalized solutions and high-quality products.
Specification of ASME/ANSI B 18.2.2 American Standard Hex Slotted Nuts:
The specification of ASME/ANSI B 18.2.2 Hex Slotted Nuts include the following details:
| Product name | ASME/ANSI B 18.2.2 Hex Slotted Nuts |
|---|---|
| Diameter: | 1/4"-1-1/2" |
| Grade: | SAE J 995: GR.2/GR.5/GR.8 A563 |
| Material: | Carbon Steel: Q195,Q235,C45,40CR,42CRMO Stainless Steel: SS304/SS316 Copper: H59, H62 |
| Surface Treatment | Zinc Plated/Plain/Black Oxidation/Dacromet/Nickel Plated |
| Packaging: | Boxes/cartons into wooden pallets |

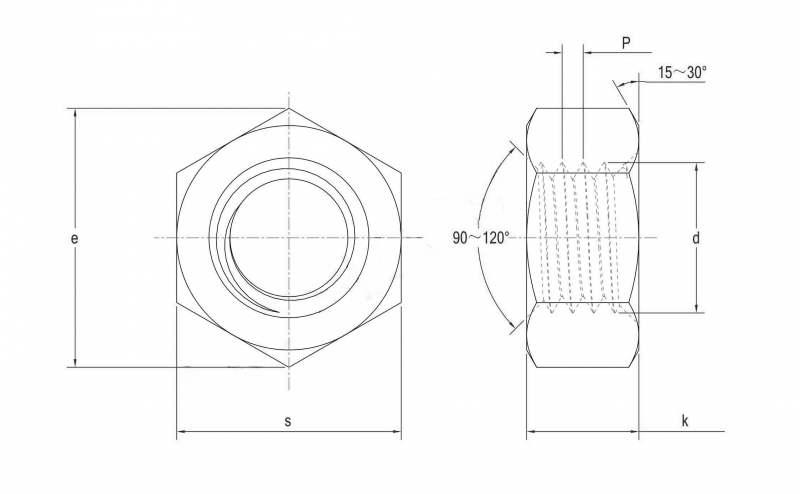

Dimension Chart of ASME/ANSI B18.2.2 Hex Slotted Nuts:
| Thread Diameter | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 |
| P | 20|28|32 | 18|24|32 | 16|24|32 | 14|20|28 | 13|20|28 | 12|18|24 | 11|18|24 | 10|16|20 | 9|14|20 | 8|12|20 | 7|12|18 | 7|12|18 | 6|12|18 | 6|12|18 |
| s min | 0.428 | 0.489 | 0.551 | 0.675 | 0.736 | 0.861 | 0.922 | 1.088 | 1.269 | 1.45 | 1.631 | 1.812 | 1.994 | 2.175 |
| s max | 0.438 | 0.5 | 0.563 | 0.688 | 0.75 | 0.875 | 0.938 | 1.125 | 1.312 | 1.5 | 1.688 | 1.875 | 2.062 | 2.25 |
| e min | 0.488 | 0.557 | 0.628 | 0.768 | 0.84 | 0.982 | 1.051 | 1.24 | 1.447 | 1.653 | 1.859 | 2.066 | 2.273 | 2.48 |
| e max | 0.505 | 0.577 | 0.65 | 0.794 | 0.866 | 1.01 | 1.083 | 1.299 | 1.516 | 1.732 | 1.949 | 2.165 | 2.382 | 2.598 |
| k min | 0.212 | 0.258 | 0.32 | 0.365 | 0.427 | 0.473 | 0.535 | 0.617 | 0.724 | 0.831 | 0.939 | 1.03 | 1.138 | 1.245 |
| k max | 0.226 | 0.273 | 0.337 | 0.385 | 0.448 | 0.496 | 0.559 | 0.665 | 0.776 | 0.887 | 0.999 | 1.094 | 1.206 | 1.317 |
| w min | 0.12 | 0.16 | 0.19 | 0.21 | 0.27 | 0.29 | 0.32 | 0.38 | 0.49 | 0.56 | 0.61 | 0.67 | 0.78 | 0.82 |
| w max | 0.14 | 0.18 | 0.21 | 0.23 | 0.29 | 0.31 | 0.34 | 0.4 | 0.52 | 0.59 | 0.64 | 0.7 | 0.82 | 0.86 |
| n min | 0.07 | 0.09 | 0.12 | 0.12 | 0.15 | 0.15 | 0.18 | 0.18 | 0.18 | 0.24 | 0.24 | 0.31 | 0.31 | 0.37 |
| n max | 0.1 | 0.12 | 0.15 | 0.15 | 0.18 | 0.18 | 0.24 | 0.24 | 0.24 | 0.3 | 0.33 | 0.4 | 0.4 | 0.46 |
- RELATED NUT LISTS:
- DIN6334 Hexagon Coupling Nuts
- ASME/ANSI B 18.2.2 Hex Slotted Nuts/Castle Nuts
- ASME/ANSI B18.2.2 Hex Flange Nuts
- Lock Nuts
- IFI145 Flange Nuts
- DIN982 Nylon Lock Nuts
- DIN985 Nylon Lock Nuts
- ASME B 18.16.6 Nylon Nuts
- HEX NUT
- JIS 1186 Hex Nuts
- DIN934 Hex Nuts
- A194 Hex Nuts
- A563 Hex Nuts
- DIN6915 Hex Nuts
- GOST 28919 Thick Hex Nuts
- GOST R 52645 Structural Hex Nuts
- GOST 5915 Hex Nut
- UNI5588 Hex Nuts
- UNI5587 Thick Hex Nuts
- UNI5713 Hex Nuts
- AS1112.1 Hex Nuts
- AS1252 Hex Nuts
- AS/NZS 2451 Hex Nuts
- AS/NZS 2465 Hex Nuts
- DIN6330 Hex Thick Nuts
Application of ASME/ANSI B18.2.2 Hex Slotted Nuts:
The ASME/ANSI B18.2.2 hex slotted nuts have various applications across industries due to their unique design and functionality. Some common applications include:
| Application | Details |
|---|---|
| Machinery Assembly: | Hex slotted nuts are often used in machinery assembly where adjustments or disassembly may be required. The slotted design allows for easy tightening or loosening of the nut using a screwdriver or similar tool, making them ideal for applications where accessibility is limited. |
| Woodworking: | In machinery and equipment assembly, DIN 6334 hex coupling nuts are employed to connect threaded components, such as shafts, bolts, and screws. They facilitate easy assembly and disassembly of machinery and allow for adjustments or extensions as needed. |
| Automotive and Transportation: | Hex slotted nuts find application in the automotive industry, particularly in vintage or restoration projects where traditional hardware is utilized. They are commonly used for securing components in engine assembly, chassis construction, or suspension systems. |
| Electrical Equipment: | In electrical equipment and appliances, hex slotted nuts are utilized to fasten components such as terminal blocks, switches, and connectors. The slotted design allows for easy installation and removal, facilitating maintenance and repair tasks. |
| Outdoor and Recreational Equipment: | Hex slotted nuts are found in various outdoor and recreational equipment, including bicycles, outdoor furniture, and playground structures. Their ease of use and versatility make them suitable for applications where frequent assembly or disassembly is required. |
| Lighting Fixtures: | Hex slotted nuts are commonly used in the assembly of lighting fixtures, such as lamps, chandeliers, and ceiling fans. They provide a secure fastening method while allowing for easy adjustment or replacement of components. |
