DIN6927 Prevailing Torque Three-Point Locking Flange Hexagon Nuts Supplier In China

Ningbo Teng Qi Fasteners Co., Ltd. is a reliable supplier of DIN6927 Prevailing Torque Three-Point Locking Flange Hexagon Nuts, providing high-quality fastening solutions for applications requiring secure and vibration-resistant connections. Our DIN6927 nuts are manufactured with precise three-point locking technology, which generates consistent prevailing torque and effectively prevents loosening caused by vibration or dynamic loads. The integrated flange design increases the bearing surface, improves load distribution, and eliminates the need for additional washers in many assembly applications.

With advanced production equipment and strict quality control, we ensure every DIN6927 locking flange nut meets dimensional accuracy, mechanical performance, and surface finish requirements. We offer various materials, strength grades, and corrosion-resistant coatings according to customer specifications, including zinc plating and zinc flake coatings. Our DIN6927 nuts are widely used in automotive, machinery, construction equipment, and industrial fastening systems where reliability and long-term performance are essential.

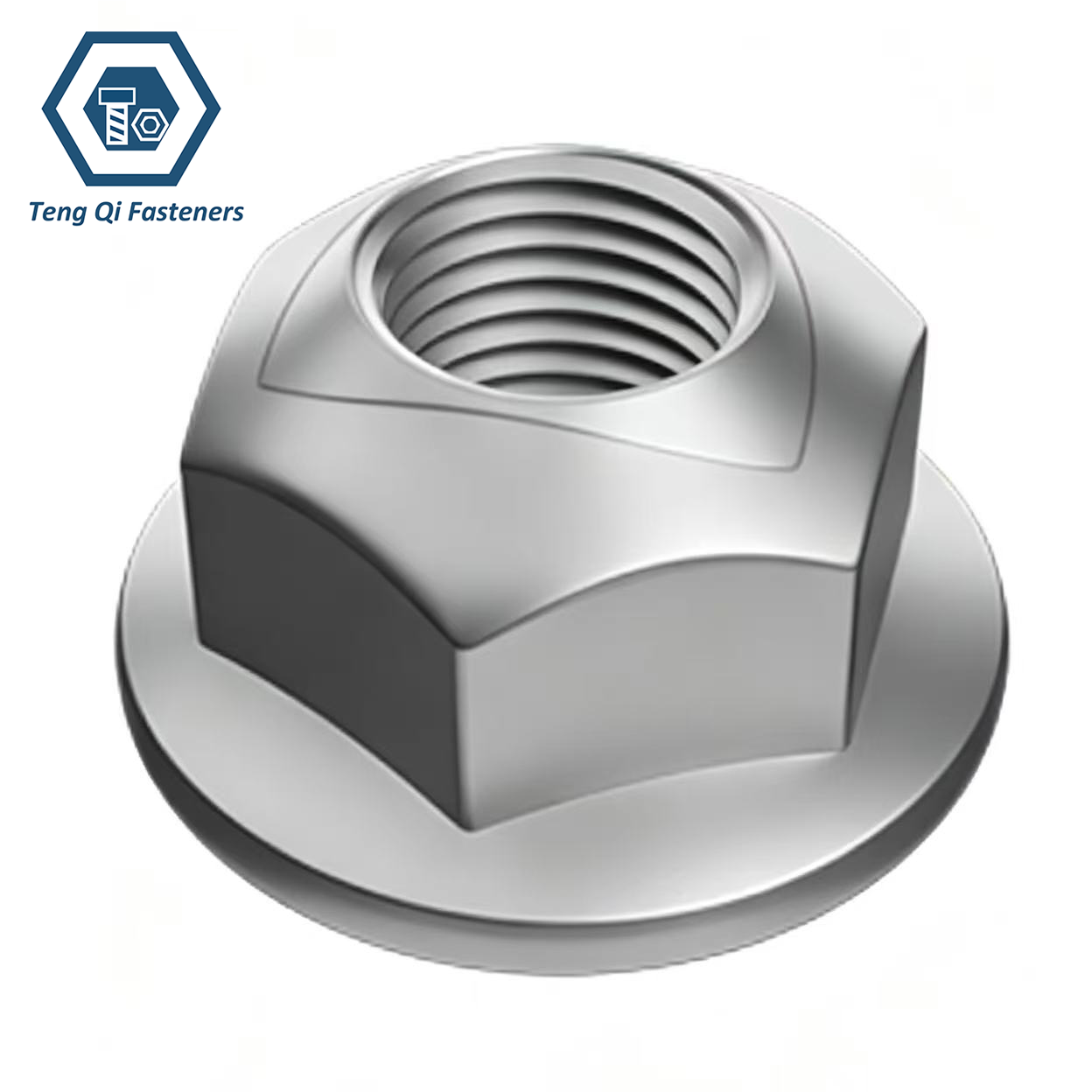

Stainless Steel DIN6927 Prevailing Torque Three-Point Locking Flange Hexagon Nuts

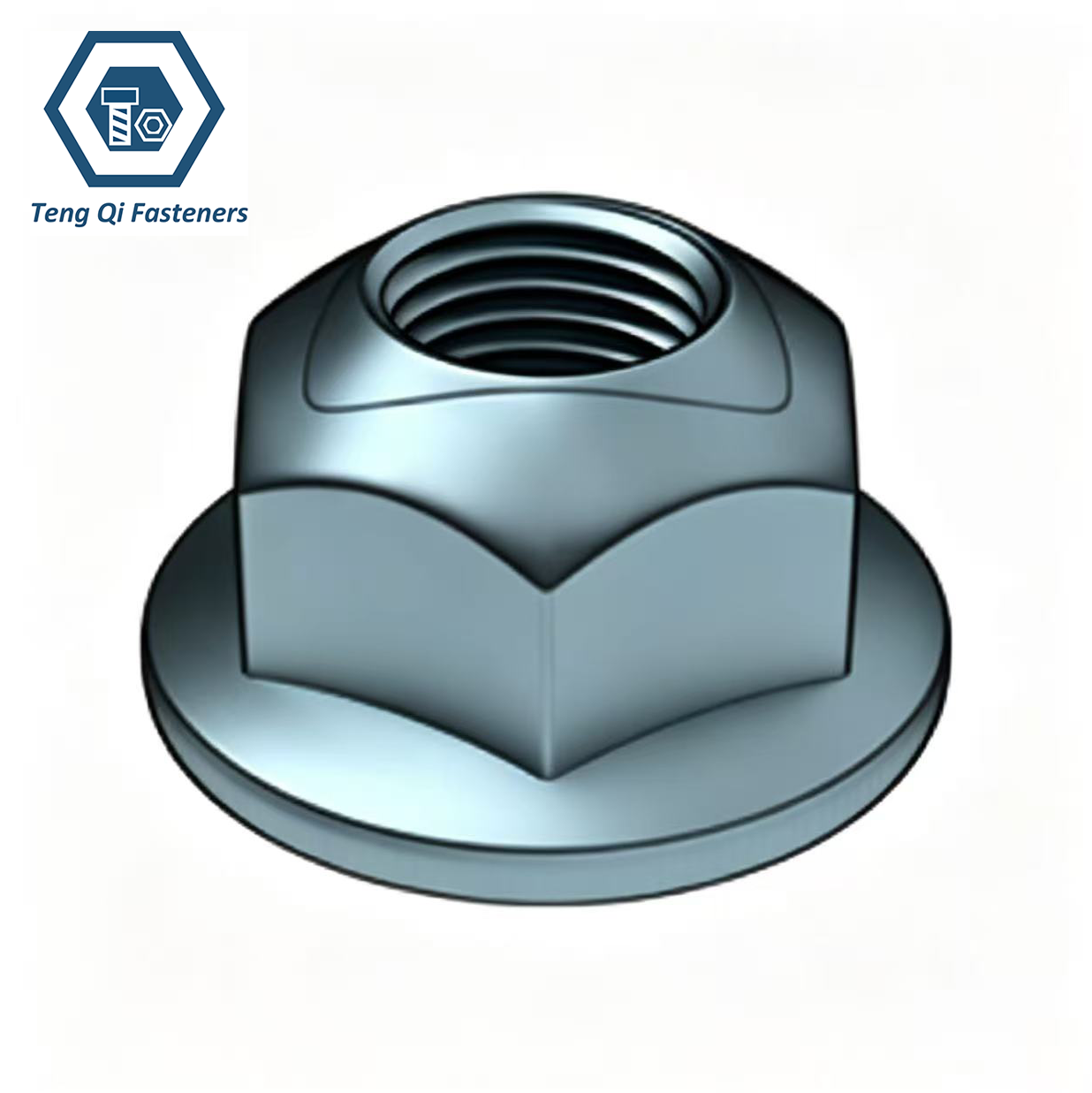

Zinc Plated DIN6927 Prevailing Torque Three-Point Locking Flange Hexagon Nuts

Specification:

DIN6927 Prevailing Torque Three-Point Locking Flange Hexagon Nuts are manufactured according to the DIN standard and feature an integrated flange base with a three-point locking design. The flange provides a larger bearing surface to distribute clamping pressure evenly and helps protect the connected parts from damage. The three-point deformation locking system creates prevailing torque, preventing the nut from loosening under vibration and dynamic loads without requiring additional locking elements.

Product nameDIN6927 Prevailing Torque Three-Point Locking Flange Hexagon Nuts
Thread Diameter:M5-M20
Material:35K 10B21 SS304 SS316
Surface TreatmentBright Pickling/Zinc Plated/Dacromet
Packaging:Boxes/cartons into wooden pallets

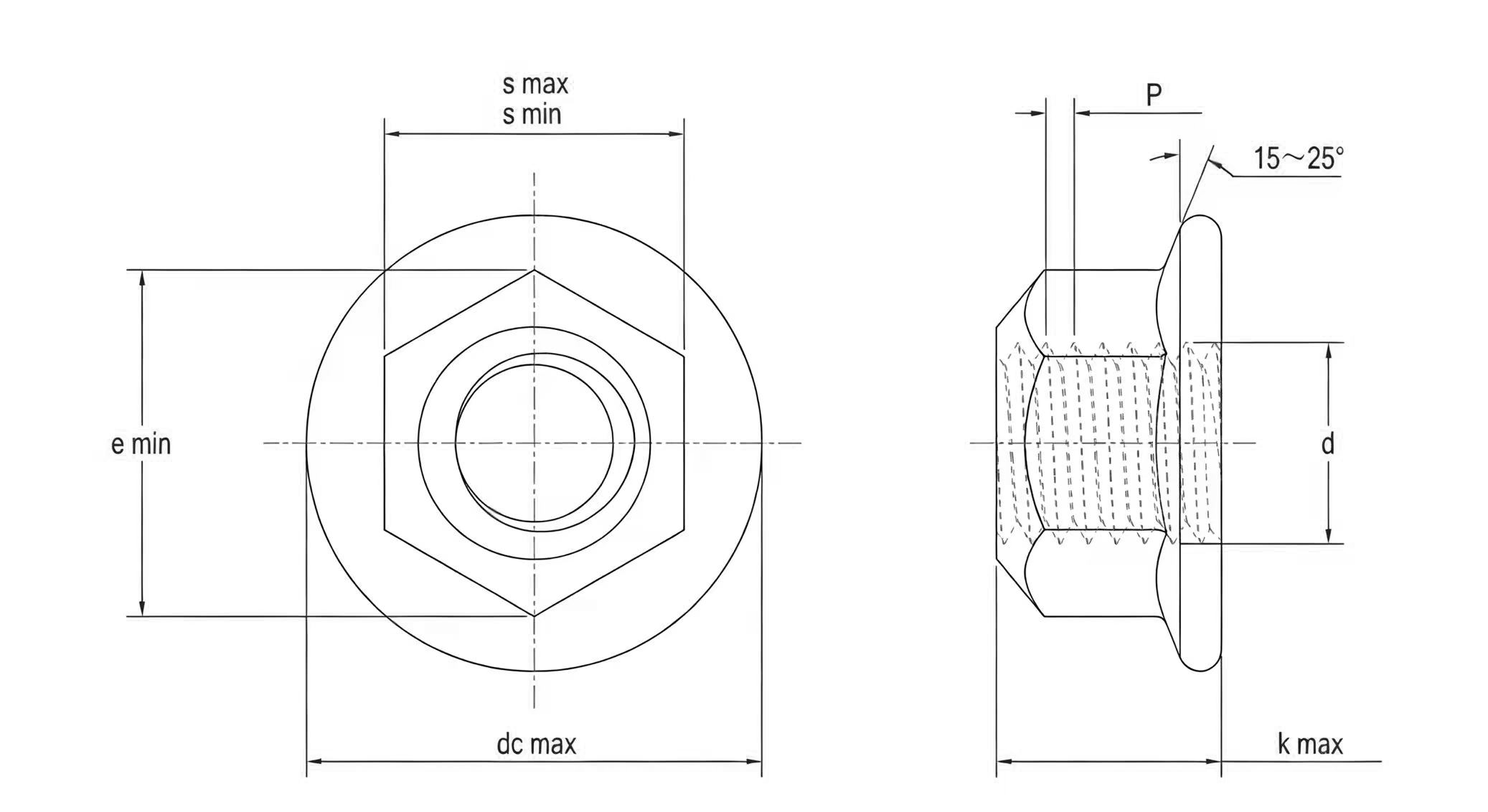

Dimension Chart of DIN6927 Prevailing Torque Three-Point Locking Flange Hexagon Nuts:

MonM5M6M8M10M12M14M16M20
P0.811|1.251|1.25|1.51.25|1.5|1.751.5|21.5|21.5|2.5
dc max11.814.217.921.82629.934.542.8
e min8.7911.0514.3816.6420.0323.3626.7532.95
k max6.27.39.411.413.815.918.322.4
s max810131518212430
s min7.789.7812.7314.7317.7320.6723.6729.16

Application of DIN6927 Prevailing Torque Three-Point Locking Flange Hexagon Nuts:

DIN6927 Prevailing Torque Three-Point Locking Flange Hexagon Nuts are designed for applications requiring high reliability and vibration resistance. The three-point locking structure provides stable prevailing torque, while the integrated flange increases the contact area and improves load distribution, making them ideal for assemblies subjected to repeated movement, impact, or vibration.

ApplicationDetails
Machinery ManufacturingApplied in industrial machines, automation equipment, and mechanical assemblies to provide secure fastening under continuous operation and dynamic loading conditions.
Construction EquipmentSuitable for excavators, loaders, agricultural machinery, and heavy-duty equipment exposed to shock, vibration, and harsh working environments.
Railway IndustryUsed in railway vehicles and infrastructure components where long-term fastening stability and safety are critical.
Steel Structures and Engineering ProjectsApplied in metal frameworks, industrial structures, and equipment installations requiring strong and durable connections.
Electrical and Energy EquipmentUsed in power equipment, wind energy systems, and other facilities where preventing loosening during long-term operation is important.
