Stainless Steel Roll in Single Leaf Spring T-Slot Sliding Nut Supplier In China
Ningbo Teng Qi Fasteners Co., Ltd. is a reliable supplier of Stainless Steel Roll in Single Leaf Spring T-Slot Sliding Nuts, providing precision fastening solutions for aluminum profile structures and modular assembly systems. Our T-slot nuts are manufactured with carefully controlled dimensions, accurate thread processing, and a stable single leaf spring design, allowing quick insertion into profile slots while maintaining secure positioning before tightening. This convenient roll-in installation method helps improve assembly efficiency and provides greater flexibility for equipment design and modification.
With extensive experience in stainless steel fastener manufacturing, we focus on material quality, production consistency, and application reliability. Our Stainless Steel Single Leaf Spring T-Slot Sliding Nuts are made from corrosion-resistant stainless steel materials and are suitable for environments requiring durability, clean appearance, and long service life. We support various thread sizes, profile compatibility, and customized requirements to meet the needs of customers in industrial automation, machine building, aluminum frame systems, and precision equipment industries.
Specification:
Stainless Steel Roll in Single Leaf Spring T-Slot Sliding Nuts are designed for quick and flexible fastening solutions in aluminum profile systems. Featuring a single leaf spring structure, these T-slot nuts can be inserted directly into the profile groove from the side without requiring access to the end of the profile. The spring mechanism helps hold the nut in position before tightening, improving installation efficiency and reducing assembly time.
| Product name | Stainless Steel Roll in Single Leaf Spring T-Slot Sliding Nut |
|---|---|
| Thread Diameter: | M3-M6 |
| Material: | SS304 |
| Surface Treatment | Bright Pickling |
| Packaging: | Boxes/cartons into wooden pallets |
Dimension Chart of M3-M6 Stainless Steel Roll in Single Leaf Spring T-Slot Sliding Nut:

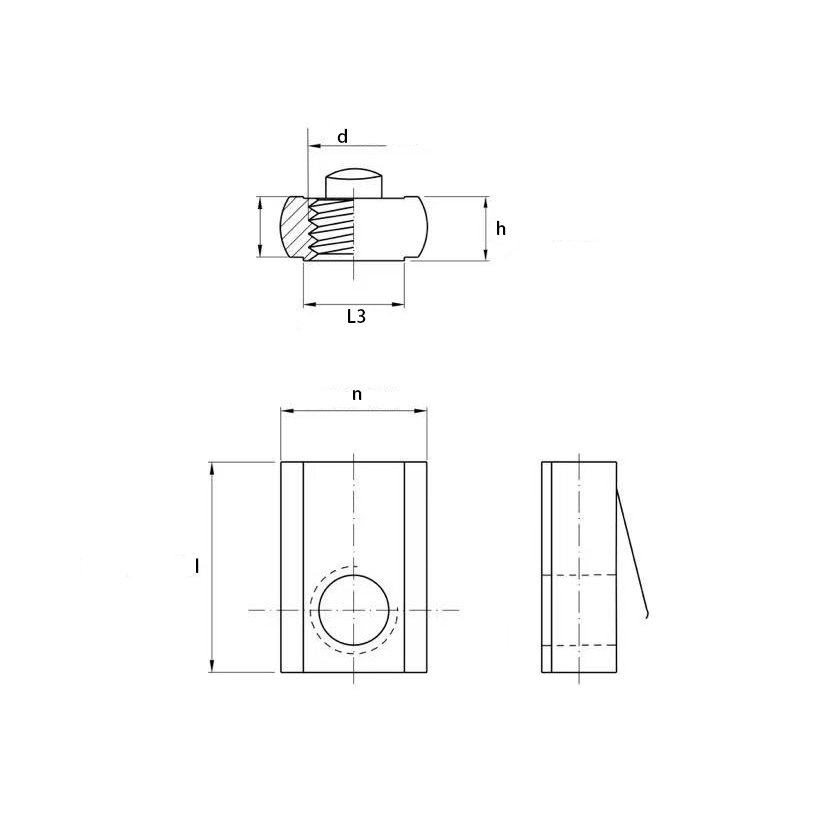

The drawing of M3-M6 Stainless Steel Roll in Single Leaf Spring T-Slot Sliding Nut provides a clear visual representation of the product structure, dimensions, and key design features. It shows the threaded hole size, T-slot sliding structure, spring leaf position, and overall geometry, helping customers better understand the installation method and compatibility with different aluminum profiles. The detailed drawing supports engineers and purchasers in confirming specifications before ordering and ensures accurate selection for various assembly requirements.
| Thread Diameter | M3 | M4 | M5 | M6 |
| Thread Pitch | 0.5 | 0.7 | 0.8 | 1 |
| L3 | 5.5-5.8 | 5.5-5.8 | 5.5-5.8 | 5.5-5.8 |
| h | 4.4-4.7 | 4.4-4.7 | 4.4-4.7 | 4.4-4.7 |
| n | 8-8.3 | 8-8.3 | 8-8.3 | 8-8.3 |
| l | 22.4-22.7 | 22.4-22.7 | 22.4-22.7 | 22.4-22.7 |
- RELATED NUT LISTS:
- Stainless Steel DIN466 Knurled Nuts
- DIN6923 Hex Flange Nut
- DIN508 Nuts for T-slots
- DIN439 Chamfered Hexagon Thin Nuts
- DIN981 Locknuts
- DIN986 Hex Domed Cap Nuts
- DIN980V Three-Point Locking Hexagon Nuts
- EN14399-3 High-strength Structural Hex Nut
- DIN6927 Prevailing Torque Three-Point Locking Flange Hexagon Nuts
- Stainless Steel DIN7967 Self-Locking Counter Nuts
- Stainless Steel DIN917 Low Type Hexagon Cap Nuts
- DIN928 Square Weld Nuts
- DIN935 Hexagon Slotted and Castle Nuts
- Stainless Steel Roll-in T Slot Nut for 20 Series
Application of Stainless Steel Roll in Single Leaf Spring T-Slot Sliding Nut:
Stainless Steel Roll in Single Leaf Spring T-Slot Sliding Nuts provide an efficient fastening solution for applications requiring flexible positioning and easy installation. The roll-in design allows the nut to be inserted into aluminum profile slots without removing end caps or dismantling existing structures, while the spring leaf helps hold the nut securely in place before tightening.
| Application | Details |
|---|---|
| Industrial Automation Industry | Used in automation equipment frames, robotic workstations, conveyor systems, and production line structures for quick and flexible component installation. |
| Machinery Manufacturing | Applied in machine frames, protective covers, equipment supports, and mechanical structures where adjustable and reliable fastening connections are required. |
| Aluminum Profile Systems | Widely used in modular aluminum extrusion assemblies, including workbenches, racks, enclosures, and custom-built industrial structures. |
| Robotics Industry | Suitable for robot bases, testing platforms, and modular robotic systems requiring easy adjustment and repeated assembly. |
| Electrical and Electronic Equipment | Used in control cabinets, equipment housings, and instrument frames where corrosion resistance and neat installation are important. |
| Laboratory Equipment | Applied in laboratory frames, testing equipment, and research platforms requiring clean, durable, and flexible fastening solutions. |
