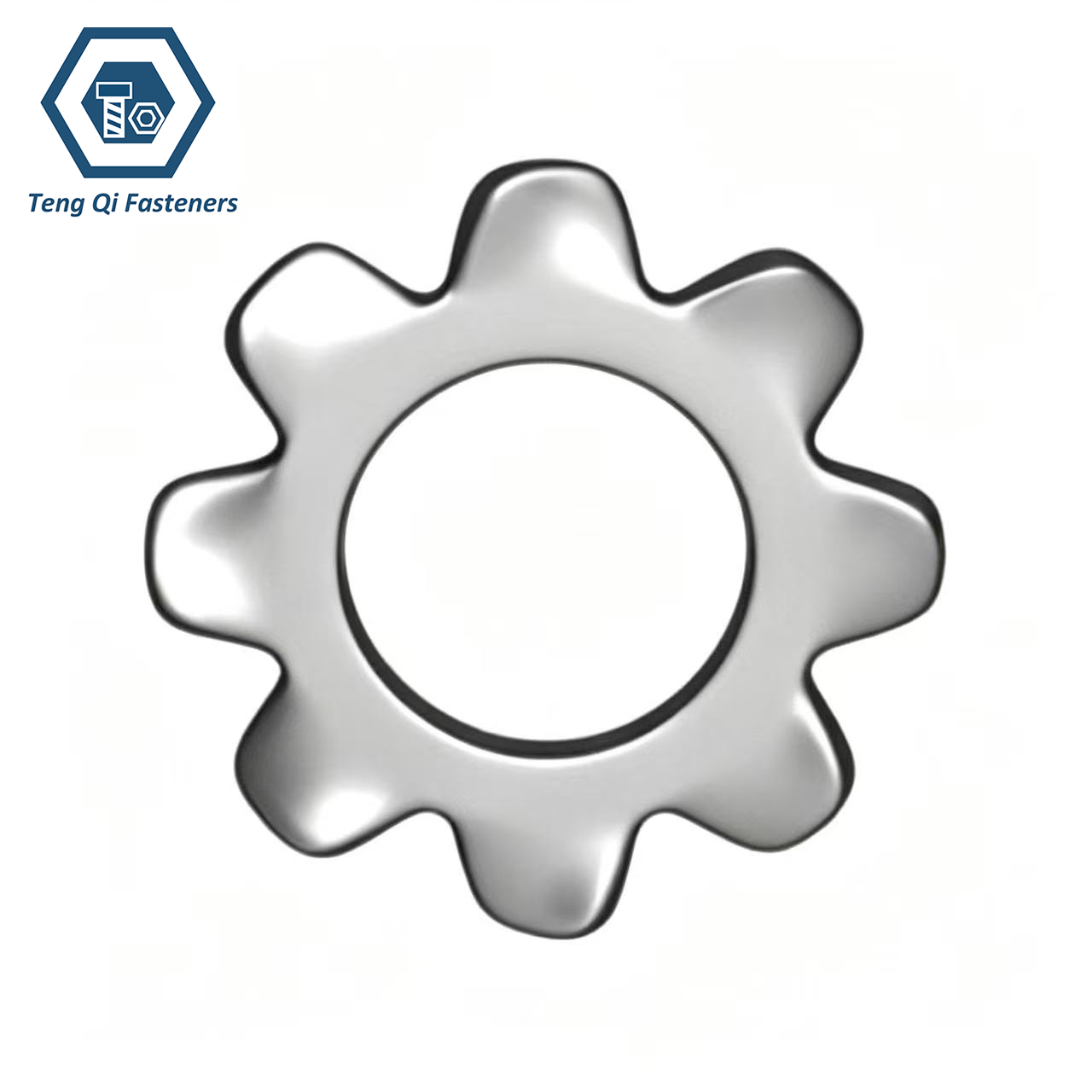

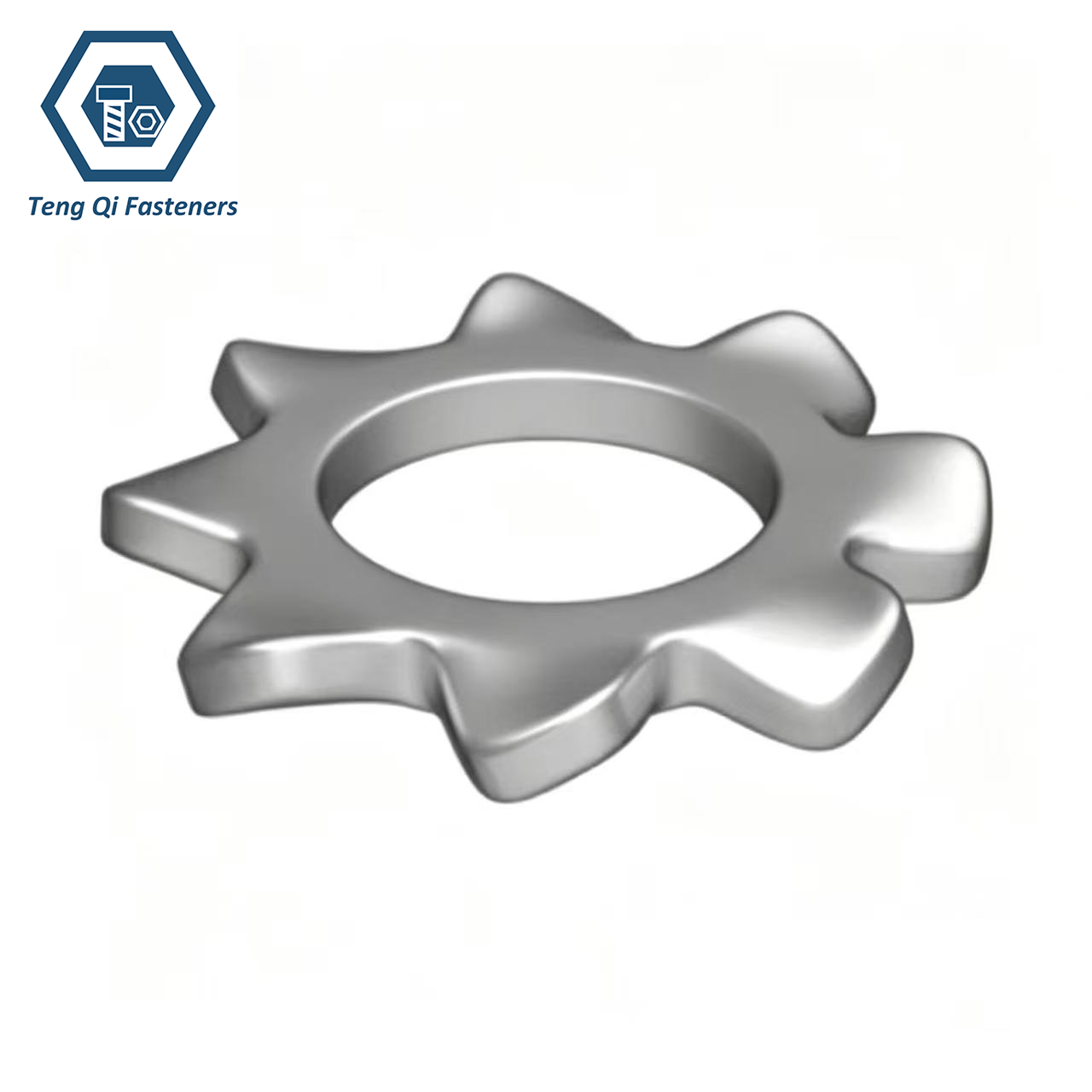

DIN6797A Stainless Steel External Teeth Lock Washers Supplier In China
Ningbo Teng Qi Fasteners Co., Ltd. is a reliable DIN6797A Stainless Steel External Teeth Lock Washers supplier with professional manufacturing experience and strong precision stamping capabilities. Unlike ordinary washer suppliers, we focus on controlling the complete production process, from stainless steel material selection and mold design to stamping, inspection, and packaging. Our advanced stamping technology enables us to produce external tooth lock washers with sharp and uniform teeth, accurate dimensions, and consistent spring performance, ensuring reliable locking results in different fastening assemblies. We supply DIN6797A washers in stainless steel grades such as SUS304 and SUS316, providing excellent corrosion resistance for both indoor and outdoor applications.
As an experienced stainless steel fastener manufacturer, we understand that customers need more than standard products — they need stable quality, flexible solutions, and dependable supply support. Our DIN6797A Stainless Steel External Teeth Lock Washers are manufactured under strict quality control to maintain consistent tooth geometry, surface finish, and mechanical properties. We can support various sizes, customized specifications, packaging requirements, and inspection standards to meet different project needs. With reliable production capacity and professional technical support, our external tooth lock washers are widely used in automotive, machinery, electrical equipment, construction, and industrial fastening applications where vibration resistance and secure connections are essential.
Specification:
DIN6797A Stainless Steel External Teeth Lock Washers are manufactured according to the DIN6797A standard and are designed with external serrations that provide enhanced locking performance in bolted connections. The teeth on the outer edge create a strong gripping effect between the washer and the mating surface, helping prevent fastener loosening caused by vibration, shock, or repeated loading. These washers are commonly produced from high-quality stainless steel materials such as SUS304 and SUS316, offering excellent corrosion resistance, strength, and durability for various industrial environments.
| Product name | DIN6797A Stainless Steel External Teeth Lock Washers |
|---|---|
| Inner Diamter: | Φ1.6-Φ30 |
| Material: | SS304 SS316 |
| Surface Treatment | Bright Pickling |
| Packaging: | Boxes/cartons into wooden pallets |

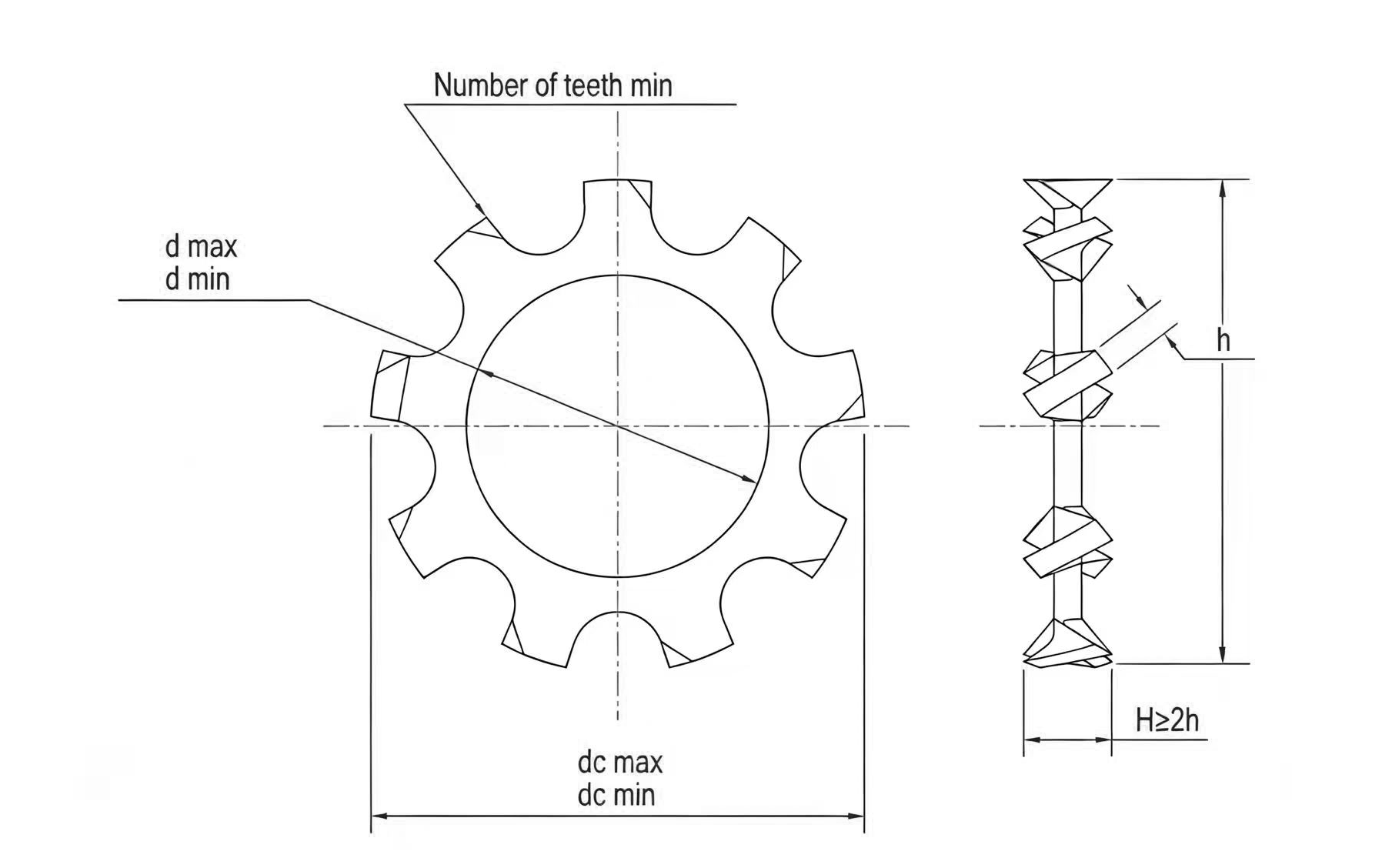

Dimension Chart of DIN6797A Stainless Steel External Teeth Lock Washers:
The dimension chart of DIN6797A Stainless Steel External Teeth Lock Washers provides detailed specifications, including inner diameter, outer diameter, thickness, number of teeth, and applicable screw or bolt sizes according to DIN6797A standard requirements. The accurate dimensional design ensures proper compatibility with matching fasteners while allowing the external teeth to effectively bite into the contact surface and improve locking performance. These standardized dimensions help customers select the correct washer size for different fastening applications and ensure consistent assembly results.
| Mon | Φ1.6 | Φ2 | Φ2.5 | Φ3 | Φ3.5 | Φ4 | Φ5 | Φ6 | Φ10 | Φ12 | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ24 | Φ27 | Φ30 |
| d min | 1.7 | 2.2 | 2.7 | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 10.5 | 13 | 15 | 17 | 19 | 21 | 23 | 25 | 28 | 31 |
| d max | 1.84 | 2.34 | 2.84 | 3.38 | 3.88 | 4.48 | 5.48 | 6.62 | 10.77 | 13.27 | 15.27 | 17.27 | 19.33 | 21.33 | 23.33 | 25.33 | 28.33 | 31.39 |
| dc max | 3.6 | 4.5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 18 | 20.5 | 24 | 26 | 30 | 33 | 36 | 38 | 44 | 48 |
| dc min | 3.3 | 4.2 | 5.2 | 5.7 | 6.64 | 7.64 | 9.64 | 10.57 | 17.57 | 19.98 | 23.48 | 25.48 | 29.48 | 32.38 | 35.38 | 37.38 | 43.38 | 47.38 |
| h | 0.3 | 0.3 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.9 | 1 | 1 | 1.2 | 1.4 | 1.4 | 1.5 | 1.5 | 1.6 | 1.6 |
| Number of teeth min | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 | 9 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | 14 | 14 |
- RELATED WASHER LISTS:
- DIN125 Flat Washer
- DIN127 Spring Lock Washer
- F436 Hardened Steel Washers
- DIN9021 Large Washer
- ASME/ANSI B 18.21.1 (USS) Flat Washer
- ASME/ANSI B 18.21.1 (SAE) Flat Washer
- ASME/ANSI B18.21.1 Helical Spring-Lock Washer
- DIN25201 Stainless Steel Double Fold Self-locking Washer
- Stainless Steel DIN6797J Internal Teeth Lock Washers
Application of DIN6797A Stainless Steel External Teeth Lock Washers:
DIN6797A Stainless Steel External Teeth Lock Washers provide a reliable locking effect by increasing the contact force between the washer, fastener, and assembly surface. Compared with standard flat washers, these washers offer improved resistance against rotation and loosening, making them suitable for applications exposed to vibration, shock, or repeated mechanical stress.
| Application | Details |
|---|---|
| Automotive Industry | Used in vehicle components, engine systems, chassis assemblies, electrical parts, and interior fittings to prevent fasteners from loosening under vibration and movement. |
| Machinery Manufacturing | Applied in industrial machines, automation equipment, motors, pumps, and mechanical assemblies where secure fastening is needed during continuous operation. |
| Electrical and Electronic Industry | Used in control cabinets, electrical panels, communication equipment, and electronic devices to ensure stable connections and protect against environmental effects. |
| Construction Industry | Applied in building equipment, metal structures, and installation systems where reliable fastening and long-term durability are required. |
| Marine Industry | Suitable for ships, offshore equipment, and coastal installations due to the excellent resistance of stainless steel materials against moisture and salt corrosion. |
| Railway and Transportation Industry | Used in railway equipment, transportation systems, and infrastructure components requiring stable fastening under vibration and impact conditions. |
