Stainless Steel GB869 90° Countersunk Head Rivets Supplier In China
Ningbo Teng Qi Fasteners Co., Ltd. is a professional Stainless Steel GB869 90° Countersunk Head Rivets manufacturer and supplier, we specialize in producing high-quality countersunk head rivets according to GB869 standards. Our Stainless Steel GB869 90° Countersunk Head Rivets are designed with a precise 90° countersunk head, allowing the rivet head to sit flush with the material surface after installation. We manufacture these rivets using high-quality stainless steel materials, including SUS304 and SUS316, providing excellent corrosion resistance, strength, and long-term durability for various industrial fastening applications.
With advanced cold forming equipment, precision manufacturing processes, and strict quality control systems, we are able to supply reliable Stainless Steel GB869 90° Countersunk Head Rivets in different sizes, diameters, and lengths. As an experienced stainless steel rivets manufacturer and supplier, we offer standard and customized rivet solutions based on customers’ drawings, samples, and application requirements. Our GB869 countersunk head rivets are widely used in machinery, automotive, electrical equipment, construction, marine, and other industries where secure fastening and a smooth finished appearance are required.
Specification of GB869 90° Countersunk Head Rivets:
Stainless Steel GB869 90° Countersunk Head Rivets are manufactured according to the GB869 standard, featuring a 90° countersunk head design that provides a smooth, flush surface after riveting. These rivets are available in various diameters and lengths to meet different assembly requirements. The main specifications include rivet diameter, rivet length, countersunk head angle, head diameter, head height, and material options. We can supply GB869 countersunk head rivets in stainless steel grades such as SUS304 and SUS316, offering excellent corrosion resistance, strength, and durability for demanding industrial applications.
| Product name | Stainless Steel GB869 90° Countersunk Head Rivets |
|---|---|
| Thread Diameter: | Φ1-Φ16 |
| Material: | SS304 SS316 |
| Surface Treatment | Bright Pickling/Passivation |
| Packaging: | Boxes/cartons into wooden pallets |
Dimension Chart of GB869 90° Countersunk Head Rivets:
The dimension chart of Stainless Steel GB869 90° Countersunk Head Rivets provides detailed specifications for different sizes, including rivet diameter, length, head diameter, head height, and other critical dimensions. Manufactured according to the GB869 standard, these countersunk head rivets are designed with a 90° countersunk head that allows the rivet surface to remain flush with the workpiece after installation, making them ideal for applications where a smooth and neat appearance is required.

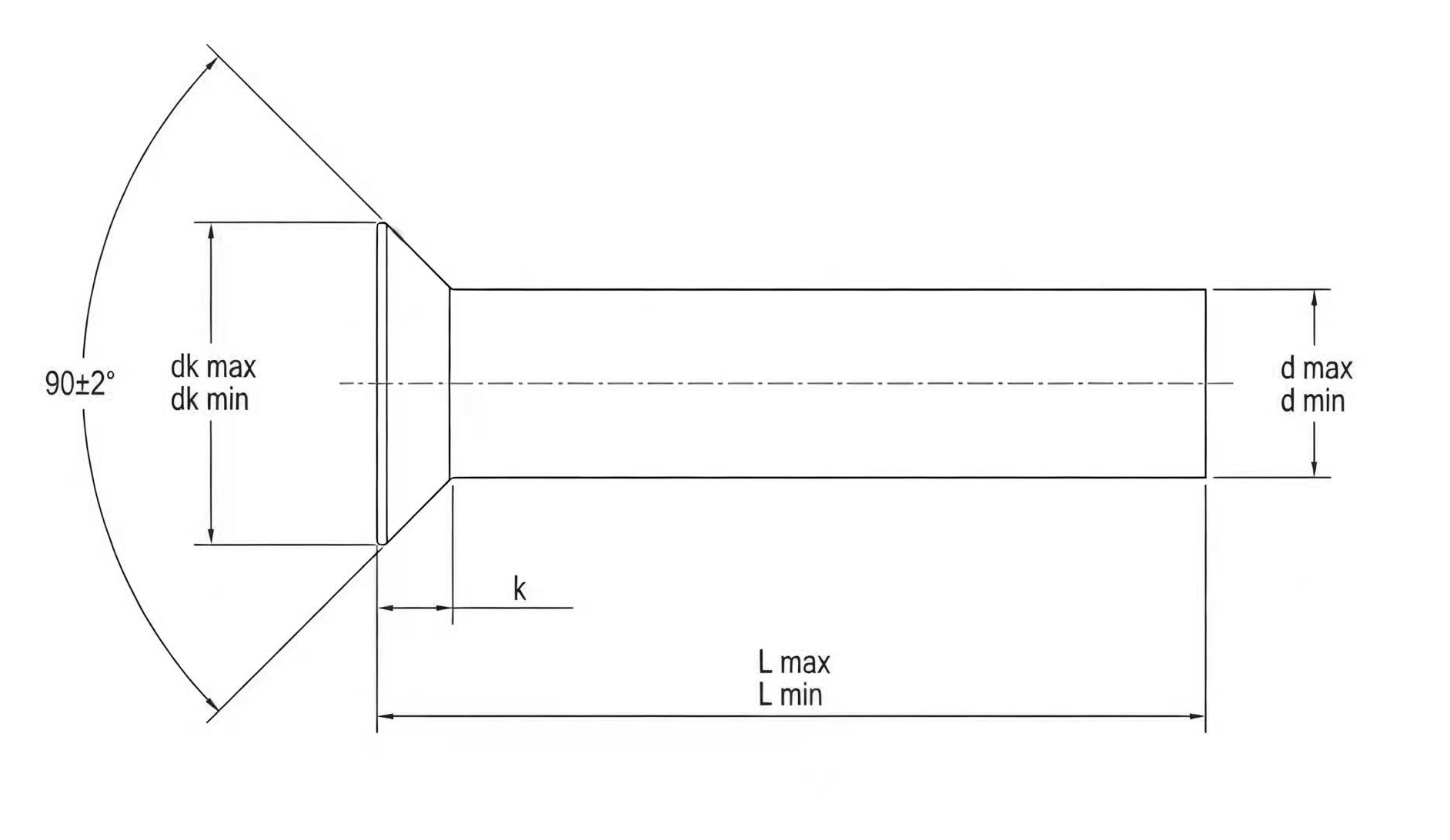

Drawing of GB869 90° Countersunk Head Rivets
| Mon | Φ1 | Φ1.2 | Φ1.4 | Φ1.6 | Φ2 | Φ2.5 | Φ3 | Φ3.5 | Φ4 | Φ5 | Φ6 | Φ8 | Φ10 | Φ12 | Φ14 | Φ16 |
| d max | 1.06 | 1.26 | 1.46 | 1.66 | 2.06 | 2.56 | 3.06 | 3.58 | 4.08 | 5.08 | 6.08 | 8.1 | 10.1 | 12.12 | 14.12 | 16.12 |
| d min | 0.94 | 1.14 | 1.34 | 1.54 | 1.94 | 2.44 | 2.94 | 3.42 | 3.92 | 4.92 | 5.92 | 7.9 | 9.9 | 11.88 | 13.88 | 15.88 |
| dk max | 2.03 | 2.23 | 2.83 | 3.03 | 4.05 | 4.75 | 5.35 | 6.28 | 7.18 | 8.98 | 10.62 | 14.22 | 17.82 | 18.86 | 21.76 | 24.96 |
| dk min | 1.77 | 1.97 | 2.57 | 2.77 | 3.75 | 4.45 | 5.05 | 5.92 | 6.82 | 8.62 | 10.18 | 13.78 | 17.38 | 18.34 | 21.24 | 24.44 |
| k | 0.5 | 0.5 | 0.7 | 0.7 | 1 | 1.1 | 1.2 | 1.4 | 1.6 | 2 | 2.4 | 3.2 | 4 | 6 | 7 | 8 |
Application of Stainless Steel GB869 90° Countersunk Head Rivets:
Stainless Steel GB869 90° Countersunk Head Rivets provide a practical fastening solution for industries requiring permanent connections, corrosion resistance, and a clean finished surface. The flush countersunk head design makes them especially suitable for applications where appearance, safety, and space limitations are important considerations.
| Application | Details |
|---|---|
| Automotive Industry | Used for fastening vehicle body components, interior panels, brackets, trim parts, and lightweight structural components. The countersunk head design provides a smooth surface that reduces interference and improves appearance. |
| Machinery and Equipment Industry | Applied in industrial machinery, mechanical assemblies, automation equipment, and manufacturing systems. Stainless steel GB869 rivets provide reliable permanent fastening and maintain stable performance under vibration and repeated loads. |
| Electrical and Electronic Equipment Industry | Used for assembling electrical cabinets, control panels, instrument housings, and electronic equipment components. Stainless steel material offers excellent corrosion resistance and helps ensure long service life in different working environments. |
| Construction Industry | Suitable for fastening metal sheets, architectural components, decorative panels, and structural parts where a flush surface is required. The 90° countersunk head allows for a neat appearance and prevents protrusion after installation. |
| Marine Industry | Widely used in shipbuilding, marine equipment, and offshore applications due to the excellent corrosion resistance of stainless steel materials such as SUS304 and SUS316. These rivets can withstand humid and saltwater environments. |
| Furniture and Hardware Industry | Used in metal furniture, hardware products, and decorative assemblies where both secure fastening and aesthetic appearance are important. |
