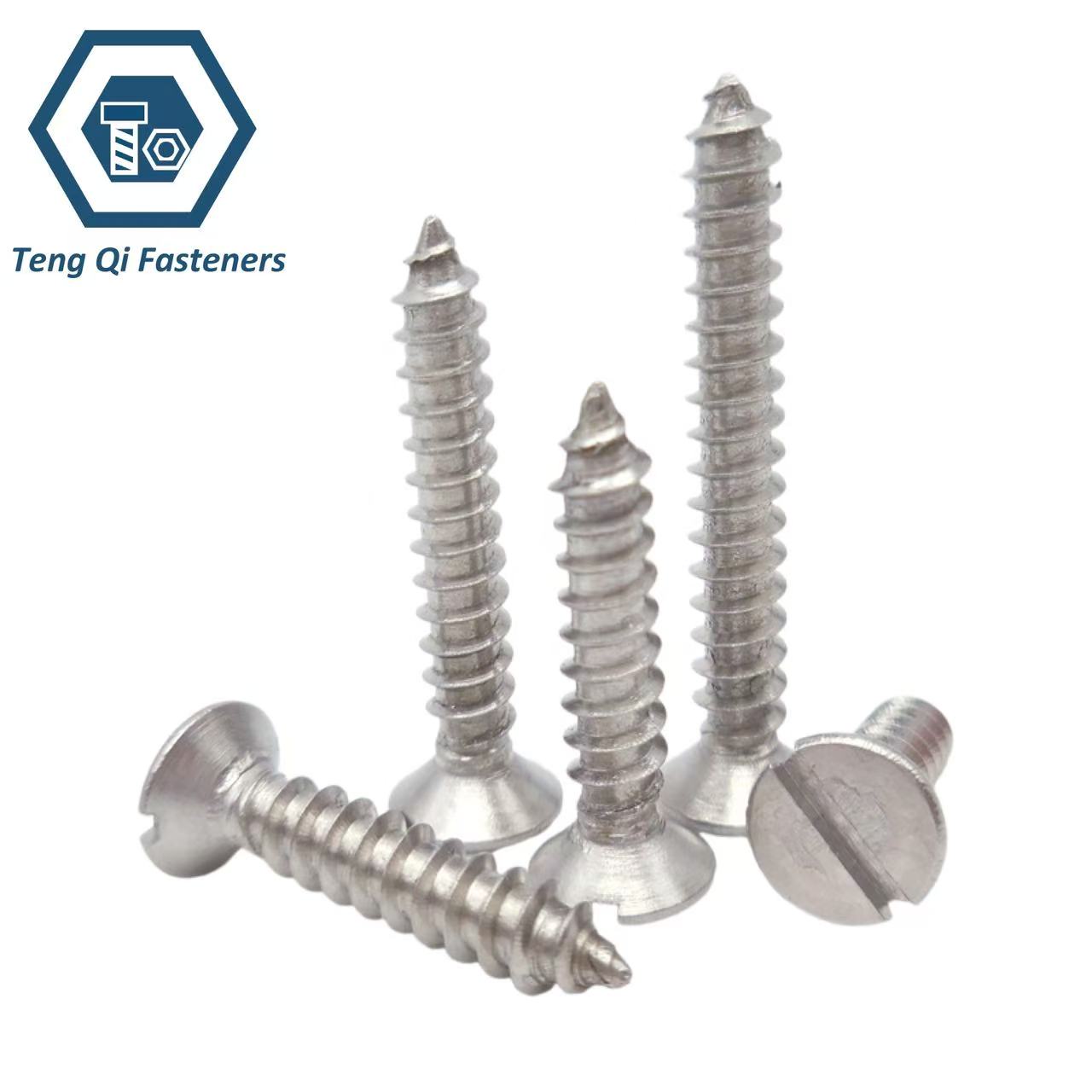

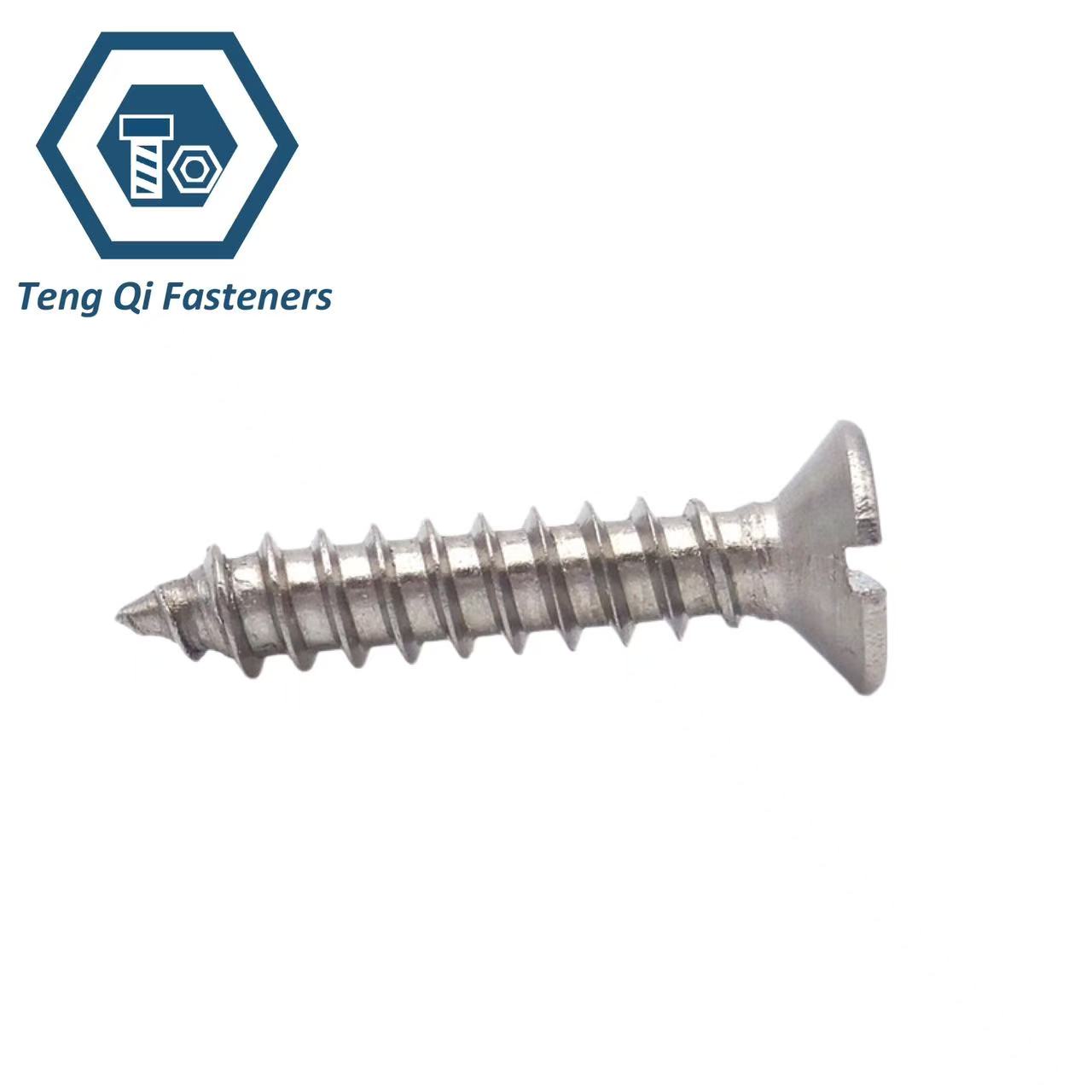

DIN7972 Slotted Countersunk Head Tapping Screws
DIN 7972 slotted countersunk head tapping screws feature a flat countersunk head and a straight slot drive. The countersunk head is designed to sit flush with the surface when installed in a suitably countersunk hole, making these screws suitable for assemblies where a smooth surface finish is required. The slotted drive provides a simple installation method, while the self-tapping thread allows the screw to form mating threads in suitable materials.
We supply DIN 7972 slotted countersunk head tapping screws in various sizes, with carbon steel and stainless steel options available. Different surface finishes, including zinc plating and other protective coatings, can be selected according to application requirements. When choosing the appropriate screw, thread diameter, length, head dimensions, material grade, and corrosion resistance should be considered to ensure compatibility with the intended assembly.
Specification:
| Item | Specification |
|---|---|
| Standard | DIN7972 |
| Product Type | Slotted Countersunk Head Tapping Screws |
| Head Style | Countersunk Head |
| Drive Type | Slotted |
| Thread System | Metric |
| Thread Series | Self Tapping Thread |
| Thread Standard | ISO 1478 |
| Size Range | ST2.2-ST6.3 |
| Material | Carbon Steel,Stainless Steel |
| Surface Treatment | Black Oxidation,Zinc Plated,Bright Finish |
| Inspection | Dimensions,Thread,Hardness,Coating |
