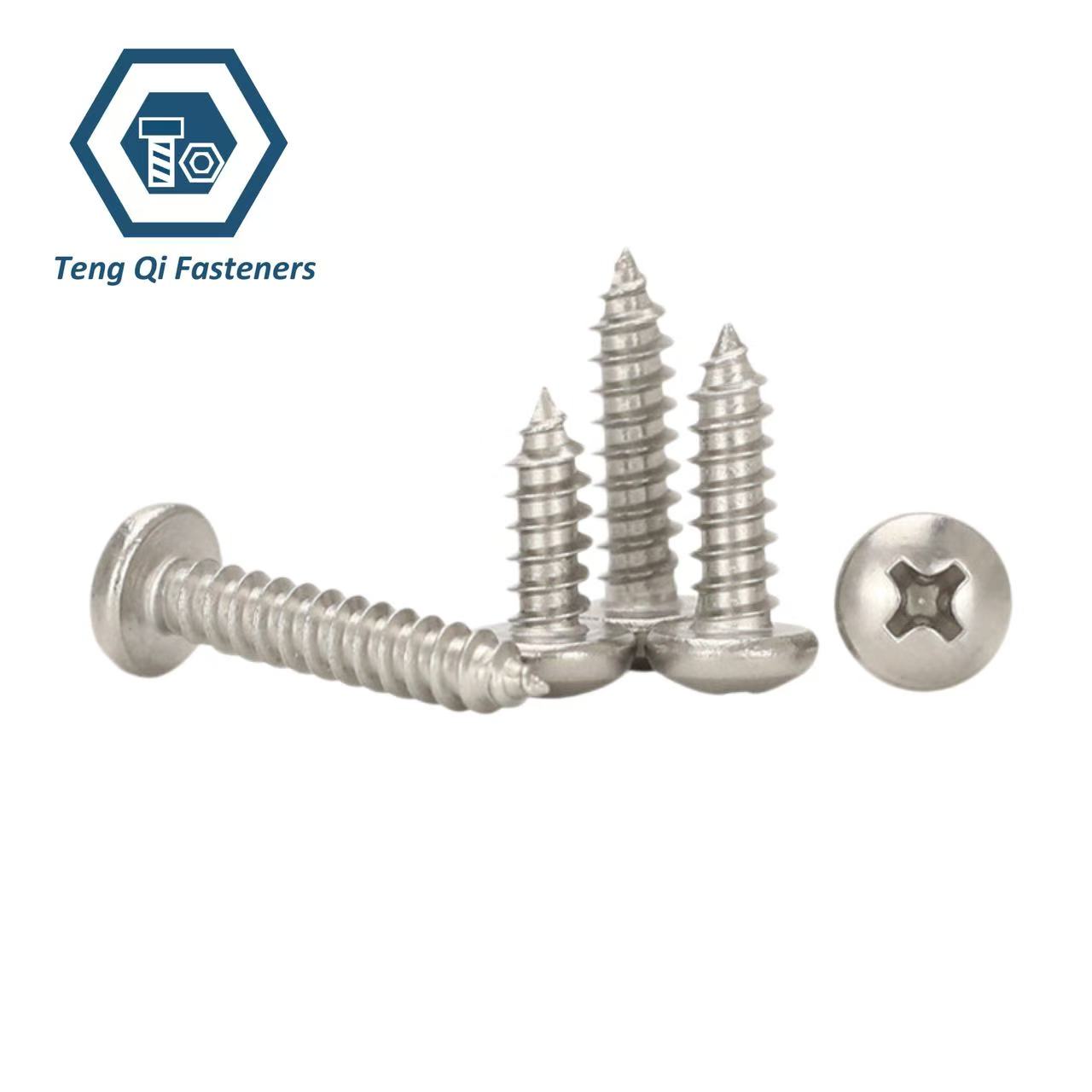

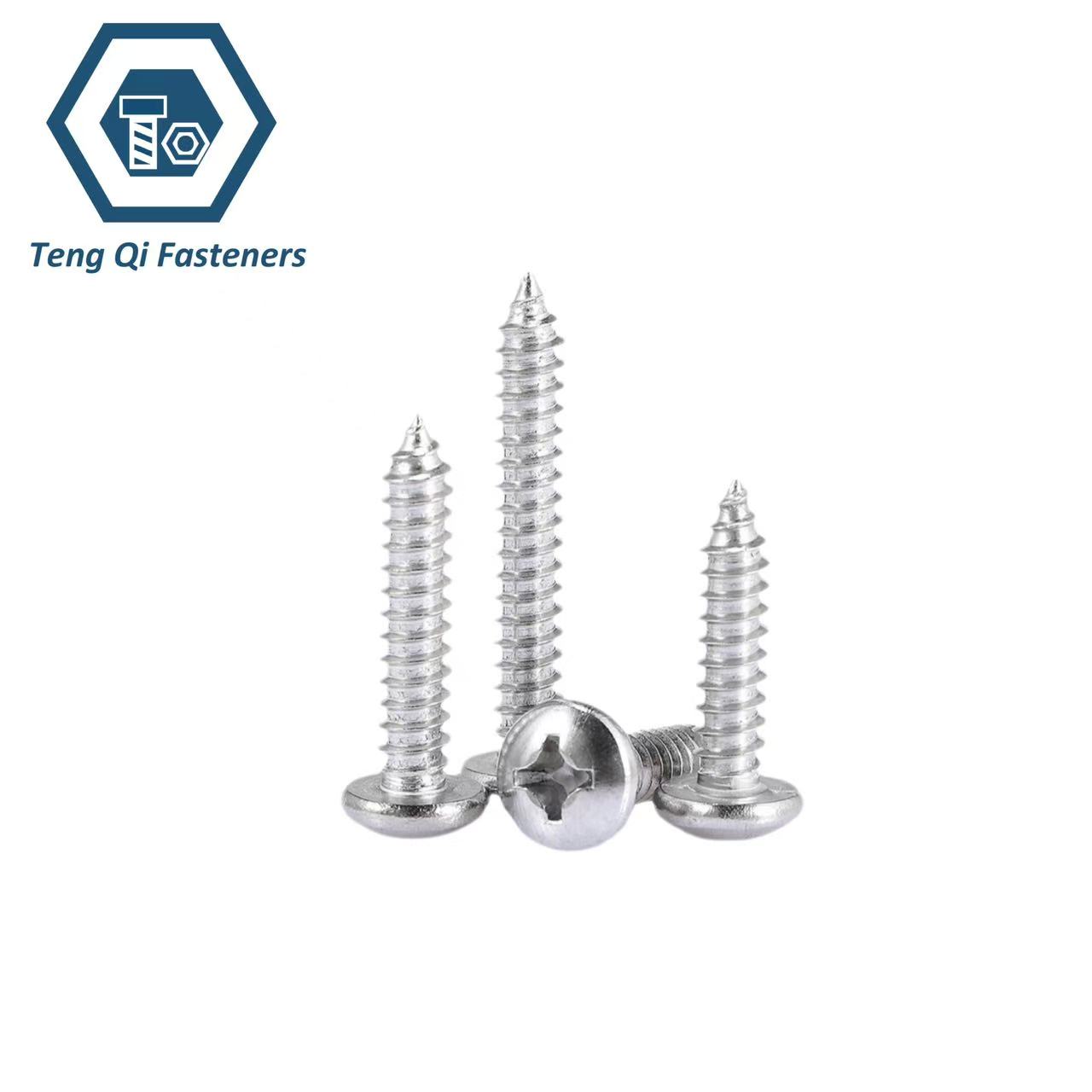

DIN7981 Cross Recessed Pan Head Tapping Screws
DIN 7981 pan head self-tapping screws feature a rounded head with a cross-shaped recess, providing a practical fastening solution for sheet metal, plastic components, and other materials suitable for self-tapping threads. The pan head offers a relatively wide bearing surface, while the cross recess allows installation with a compatible screwdriver or power tool. These screws are available in different diameters and lengths to accommodate various assembly requirements.
The main dimensions of DIN 7981 screws include thread diameter, thread pitch, head diameter, head height, and cross recess size. Common metric thread sizes include ST2.2, ST2.9, ST3.5, ST3.9, ST4.2, ST4.8, ST5.5, and ST6.3. Material selection, surface finish, and screw dimensions should be considered according to the base material, installation conditions, and corrosion resistance requirements of the application.
Specification:
The specification of DIN7981 Cross Recessed Pan Head Tapping Screws Supplier include the following details:
| Item | Specification |
|---|---|
| Standard | DIN7981 |
| Product Type | Cross Recessed Pan Head Self-Tapping Screws |
| Size Range | ST2.2-ST6.3 |
| Point Type | Type C/Type F |
| Thread Standard | ISO 1478 |
| Material | Carbon Steel, Stainless Steel |
| Surface Treatment | Black Oxidation,Zinc Plated,Bright Finish |
| Inspection | Dimensions,Thread,Hardness,Coating |

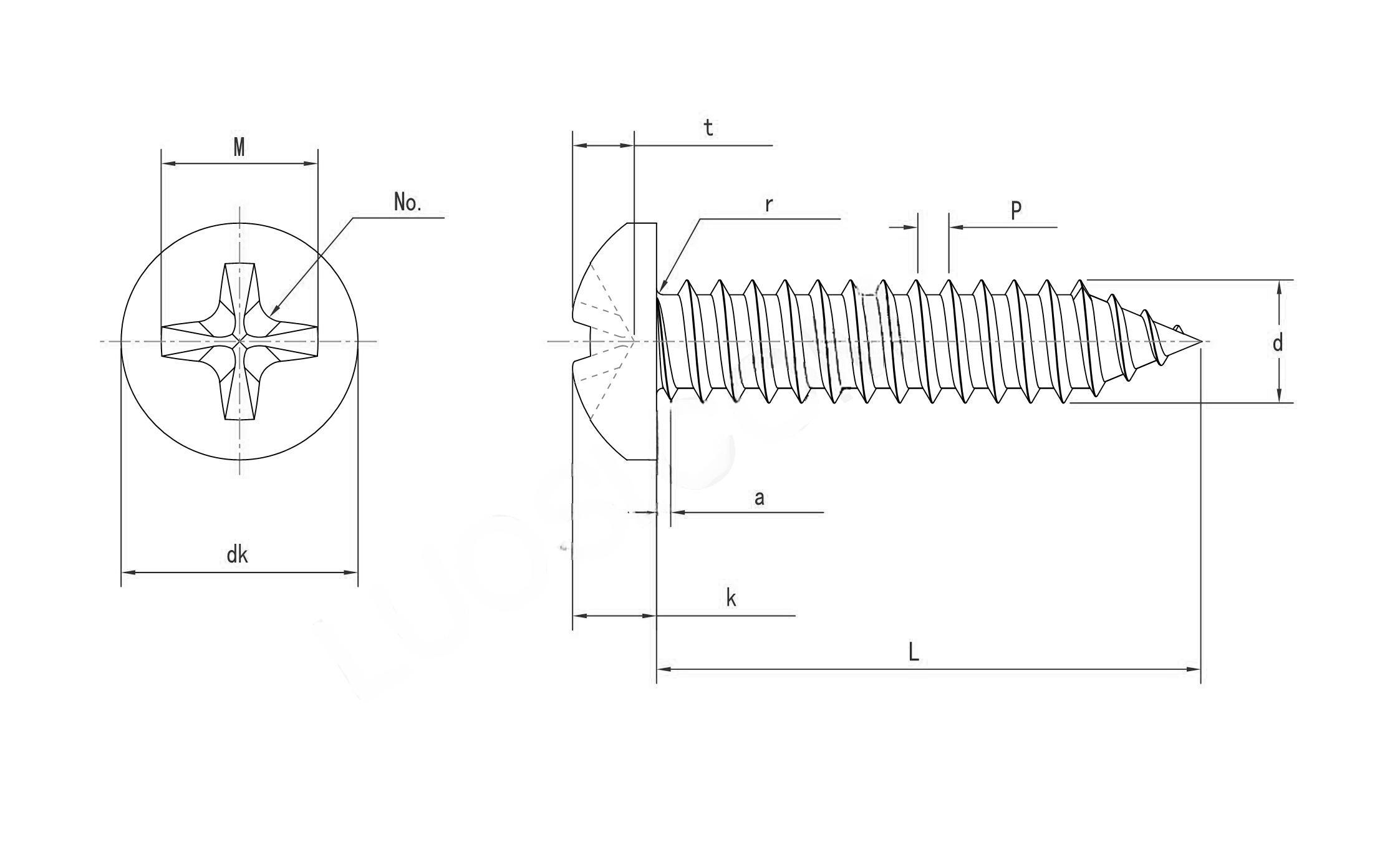

Dimension Chart:
| Mon | ST2.2 | ST2.9 | ST3.5 | ST3.9 | ST4.2 | ST4.8 | ST5.5 | ST6.3 |
| P | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.6 | 1.8 |
| a max | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
| dk max | 4.2 | 5.6 | 6.9 | 7.5 | 8.2 | 9.5 | 10.8 | 12.5 |
| dk min | 3.9 | 5.3 | 6.54 | 7.14 | 7.84 | 9.14 | 10.37 | 12.07 |
| k max | 1.8 | 2.2 | 2.6 | 2.8 | 3.05 | 3.55 | 3.95 | 4.55 |
| k min | 1.55 | 1.95 | 2.35 | 2.55 | 2.75 | 3.25 | 3.65 | 4.25 |
| r max | 0.3 | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 |
| No. | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 |
| M | 2.6 | 3 | 4.2 | 4.4 | 4.6 | 5 | 6.5 | 7.1 |
| t min | 0.86 | 1.35 | 1.4 | 1.63 | 1.8 | 2.26 | 2.49 | 3 |
| t max | 1.32 | 1.8 | 2.03 | 2.26 | 2.46 | 2.87 | 3.15 | 3.66 |
