GB831 Slotted Shoulder Screws
GB 831 Slotted Shoulder Screws are headless shoulder screws with a slotted drive, designed for compact fastening and precise positioning in mechanical assemblies. The shoulder provides a defined bearing surface for locating and supporting components, while the slotted end allows easy installation and adjustment with a suitable screwdriver.
Manufactured according to GB 831, these screws are available in sizes from M1.6 to M10 and can be supplied in different materials and finishes according to application requirements. Their compact headless design is suitable for assemblies where limited space or controlled shoulder dimensions are important. GB 831 Slotted Shoulder Screws are commonly used in mechanical equipment, fixtures, instruments, compact assemblies, and component positioning applications. Custom requirements can also be produced according to customer drawings and specifications.
Specification:
GB 831 Slotted Shoulder Screws are manufactured according to GB/T 831-1988, which specifies the dimensions and technical requirements for headless shoulder screws with a slotted drive. The standard covers nominal sizes from M1.6 to M10 and defines the shoulder, thread, slot, and other key dimensions required for proper assembly and positioning. The standard specifies different requirements according to the screw material. Steel screws are specified with mechanical property class 14H, while stainless steel versions are available in A1-50 and C4-50 classes. Steel screws use a 6g thread tolerance, and the products are manufactured to Product Grade A requirements.
GB 831 Slotted Shoulder Screws can be supplied in steel or stainless steel, with plain or zinc-plated and passivated finishes according to the applicable requirements. For applications requiring specific materials, dimensions, or finishes, production can also be carried out according to customer drawings and agreed specifications.
| Item | Specification |
|---|---|
| Standard | GB 831 |
| Product Type | Slotted Shoulder Screw |
| Head Type | Headless |
| Drive Type | Slotted |
| Size Range | M1.6-M10 |
| Thread | Metric Coarse |
| Thread Tolerance | 6g |
| Mechanical Property | 14H,A1-50,C4-50 |
| Material | Carbon Steel, Stainless Steel |
| Surface Treatment | Zinc Plated,Black Oxidation,Bright Pickling |
| Inspection | Dimensions,Thread,Slot,Mechanical Property |

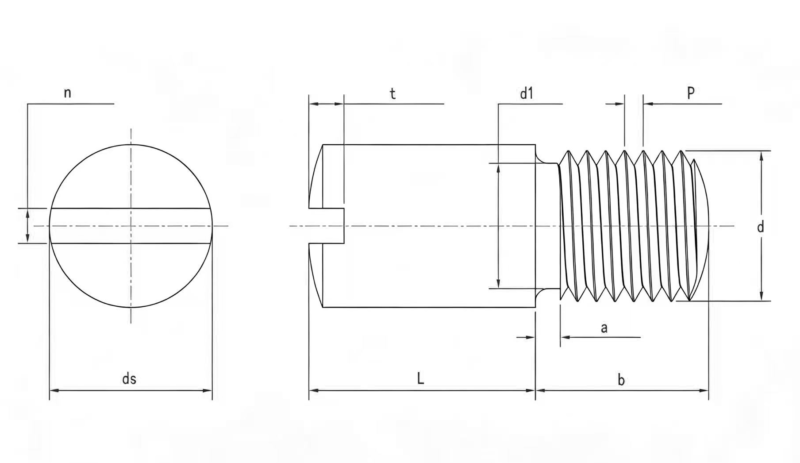

Dimension Chart of GB831 Slotted Shoulder Screws :
The GB 831 dimension chart covers the key dimensions required for the proper installation and positioning of slotted shoulder screws. These include the nominal thread diameter, shoulder diameter, shoulder length, thread length, overall length, and slot dimensions. GB 831 screws are available in nominal sizes from M1.6 to M10. The shoulder diameter and shoulder length are particularly important because the shoulder provides the locating and bearing surface for the assembled component. Thread size and length should be selected according to the mounting hole and required thread engagement.
| Mon | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 |
| P | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| ds max | 2.48 | 2.98 | 3.47 | 3.97 | 4.97 | 5.97 | 7.96 | 9.96 | 11.95 |
| ds min | 2.42 | 2.92 | 3.395 | 3.895 | 4.895 | 5.895 | 7.87 | 9.87 | 11.84 |
| n min | 0.46 | 0.56 | 0.66 | 0.66 | 0.86 | 0.86 | 1.26 | 1.66 | 2.06 |
| n max | 0.6 | 0.7 | 0.7 | 0.8 | 1 | 1 | 1.51 | 1.91 | 2.31 |
| t min | 0.6 | 0.7 | 0.9 | 1 | 1.4 | 1.7 | 2 | 2.5 | 3 |
| d1 | 1.1 | 1.4 | 1.8 | 2.2 | 3 | 3.8 | 4.5 | 6.2 | 7.8 |
| a | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 | 2 | 3 |
- RELATED SCREWS LISTS:
- Stainless Steel DIN7976 Hexagon Head Tapping Screws
- Stainless Steel DIN7982 Cross Recessed Countersunk Head Tapping Screws
- Stainless Steel DIN7983 Cross Recessed Raised Countersunk Head Tapping Screws
- Stainless Steel DIN7985 Cross Recessed Raised Cheese Head Screws
- DIN7964E Stainless Steel Socket Head Cap Captive Screw
- Stainless Steel DIN964 Slotted Raised Countersunk Head Screws
- Stainless Steel DIN966 Cross Recessed Raised Countersunk Head Screws
- Stainless Steel DIN967 Cross Recessed Pan Head Screws with Collar
- Stainless Steel DIN968 Cross Recessed Pan Head Tapping Screws with Collar
- GB830 Stainless Steel Slotted Cheese Head Screws with Shoulder
- Stainless Steel GB834 Knurled Thumb Screws
- Stainless Steel GB835 Knurled Screws
- Stainless Steel GB836Knurled Screws with Small Head
- Stainless Steel GB837 Slotted Pan Head Screws with Waisted Shank
- Stainless Steel GB839 Knurled Thumb Captive Screws with Waisted Shank
- Nickel Plated Smooth Shank Single Shoulder Shelf Support Screw
- Nickel Plated Furniture Shelf Peg with Matching Knurled Nut
Application of GB831 Slotted Shoulder Screws :
Component Positioning
GB 831 Slotted Shoulder Screws are commonly used for precise positioning and locating of components in mechanical assemblies. The shoulder provides a controlled bearing surface that helps maintain the position of the mating part.
Mechanical Assemblies
The compact headless design makes these screws suitable for mechanical assemblies where a conventional screw head could interfere with surrounding components. The slotted drive allows the screw to be installed or adjusted with a suitable screwdriver.
Fixtures & Jigs
GB 831 shoulder screws can be used in fixtures, jigs, tooling, and positioning mechanisms, where consistent component location and a defined shoulder dimension are required.
