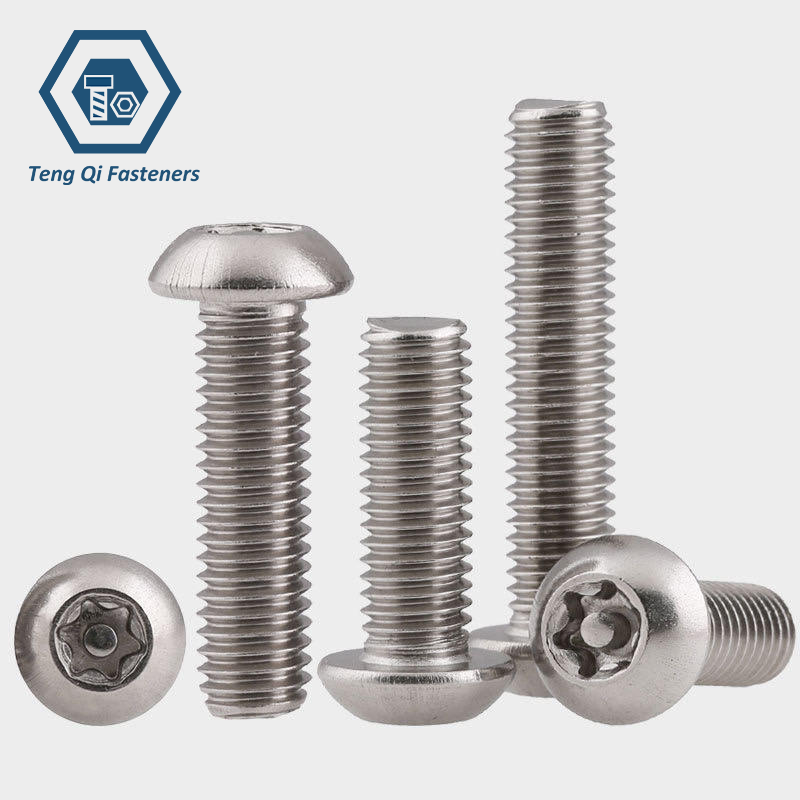

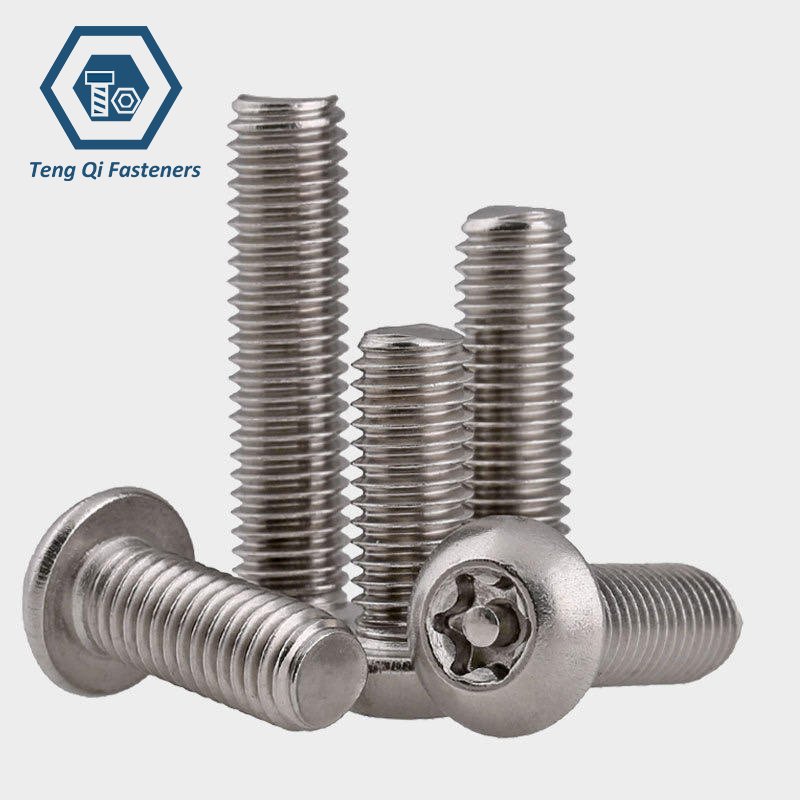

Button Head Torx Screw with Pin
Ningbo Teng Qi Fasteners Co., Ltd. is a reliable China supplier of stainless steel button head Torx screws with pins. These screws are made with accurate dimensions, ensuring a proper fit and smooth assembly. The button head provides a neat finish, while the Torx slot with pin helps maintain steady torque during installation.
Our stainless steel button head Torx screws with pins are widely used in machinery, electronics, automotive, and precision equipment. They are durable, rust-resistant, and designed for long-lasting performance in various working conditions.
We offer fair prices, helping you get dependable quality screws without unnecessary cost. Choosing our screws means you can trust your assembly will be secure, stable, and reliable.
Specification:
The specification of stainless steel button head torx screw with Pin include the following details:
| Item | Metric Button Head Torx Screw with Pin | Inch Button Head Torx Screw with Pin |
|---|---|---|
| Size Range | M2-M12 | #1-1/2" |
| Thread | ISO Metric Coarse,Fine Thread | UNC,UNF |
| Thread Standard | ISO 68-1,ISO 965 | ASME B1.1 |
| Thread Class | 6g | 2A |
| Material | Cabon Steel,Alloy Steel,Stainless Steel | Cabon Steel,Alloy Steel,Stainless Steel |
| Steel Property Class | ISO 898-1 Class8.8,10.9,12.9 | ASTM F835 |
| Stainless Steel Class | A2-70,A2-80,A4-70,A4-80 | ASTM F879 |
| Surface Treatment | Black Oxidation, Zinc Plated, HDG, Dacromet, Bright Finish,Passivation | |
| Inspection | Dimension,Thread,Mechanical Proeprty,Coating | |
- RELATED SCREW LISTS:
- Countersunk Head Torx Screw
- Cylindrical Head Torx Screw
- Countersunk Head Torx Screw with Pin
- Cylindrical Head Torx Screw with Pin
- Hexagon Socket Countersunk Head Cap Screw
- Hexagon Socket Button Head Screws
- Hexagon Socket Head Cap Screw
- Flat Countersunk Head Screw with Cross Recess
- Pan Head Screw with Cross Recess
- Slotted Countersunk Head Screw
- Slotted Pan Head Screw
Dimension Chart:
| Mon | #1 | #2 | #4 | #5 | #6 | #8 | #10 | 1/4 | 5/16 | 3/8 | 1/2 |
| P | 64 | 56 | 40 | 40 | 32 | 32 | 24 | 20 | 18 | 16 | 13 |
| dk max | 0.139 | 0.164 | 0.213 | 0.238 | 0.262 | 0.312 | 0.361 | 0.437 | 0.547 | 0.656 | 0.875 |
| dk min | 0.129 | 0.154 | 0.201 | 0.226 | 0.25 | 0.298 | 0.347 | 0.419 | 0.527 | 0.636 | 0.851 |
| k max | 0.039 | 0.046 | 0.059 | 0.066 | 0.073 | 0.087 | 0.101 | 0.132 | 0.166 | 0.199 | 0.265 |
| k min | 0.033 | 0.038 | 0.051 | 0.058 | 0.063 | 0.077 | 0.091 | 0.122 | 0.152 | 0.185 | 0.245 |
| No. | T5 | T6 | T8 | T10 | T10 | T15 | T25 | T27 | T40 | T45 | T55 |
| e | 0.058 | 0.069 | 0.094 | 0.111 | 0.111 | 0.132 | 0.178 | 0.2 | 0.266 | 0.312 | 0.446 |
| t min | 0.015 | 0.022 | 0.03 | 0.035 | 0.035 | 0.04 | 0.05 | 0.06 | 0.09 | 0.105 | 0.14 |
