DIN7983 Cross Recessed Raised Countersunk Head Tapping Screws
DIN 7983 Cross Recessed Raised Countersunk Head Tapping Screws are designed for assemblies where the fastener head needs to sit neatly within or close to the surface of the component. The raised countersunk head combines a tapered underside with a slightly projecting head, allowing the screw to provide a clean fastening appearance while retaining a defined bearing area around the joint. Its cross recess provides a familiar drive interface for screwdrivers and powered installation tools.
The tapping thread allows the screw to engage directly with a suitable pre-drilled hole, eliminating the need for a separate nut in many sheet-metal and fabricated-component assemblies. The combination of a raised countersunk head, cross recess, and tapping thread makes DIN 7983 useful when both the appearance of the finished surface and practical production assembly matter. Screw diameter, length, material, and surface finish can be selected according to the thickness of the components, substrate characteristics, installation requirements, and service environment.
Specification:
DIN 7983 tapping screws are specified by their raised countersunk head, cross recess, tapping thread, and pointed shank. The raised countersunk configuration provides a defined seating surface when the screw is installed into a prepared countersunk hole, while the cross recess allows straightforward tightening with commonly used screwdrivers or powered assembly tools. The thread and point geometry are designed for direct engagement with suitable metal or other compatible substrates.
For different production and service requirements, DIN 7983 screws can be supplied in carbon steel or stainless steel. Carbon steel versions are commonly selected for general sheet-metal fabrication and mechanical assemblies, with zinc plating, zinc flake, black oxide, or other finishes available for corrosion protection. Stainless steel versions can be selected where moisture resistance is more important, including equipment housings and outdoor or corrosive-service assemblies. Screw diameter, length, head dimensions, thread configuration, material grade, and surface finish can be specified according to the applicable standard and customer requirements.
| Item | Specifiacation |
|---|---|
| Product Type | Raised Countersunk Head Tapping Screw |
| Head Type | Raised Countersunk Head |
| Drive | Cross Recess/Phillips |
| Thread Type | Tapping Thread |
| Thread Diameter | ST2.2-ST6.3 |
| Material | Carbon Steel/Stainless Steel |
| Surface Treatment | Zinc Plated/Dacromet/Black Oxidation/Bright Finish/Passivation |
| Installation | Screwdrive |

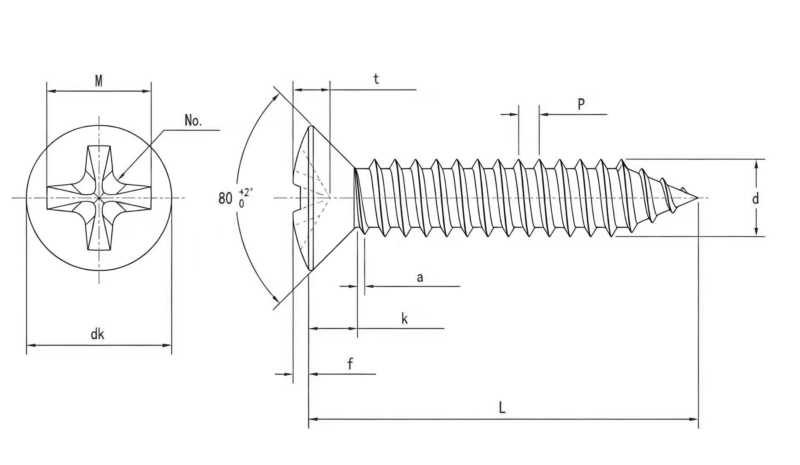

Dimension Chart of DIN7983 Tapping Screws:
The DIN 7983 dimension chart covers the main dimensions used to select a raised countersunk head tapping screw for a particular joint. The available tapping screw sizes range from ST2.2 to ST6.3, providing options for thin sheet-metal components as well as larger fabricated parts. Screw diameter and length should be selected according to the material thickness and the required thread engagement, while the head dimensions determine how the screw seats against the countersunk surface.
Key dimensions include the nominal thread diameter (ST), screw length (l), raised countersunk head diameter (dk), head height (k), and cross-recess dimensions. The countersunk head geometry is particularly important when the finished surface needs controlled head projection, so the mating hole should be prepared to suit the specified head dimensions. Comparing the diameter, length, and head geometry in the chart helps ensure proper seating, sufficient thread engagement, and compatibility with the selected installation tool.
| Mon | ST2.2 | ST2.9 | ST3.5 | ST3.9 | ST4.2 | ST4.8 | ST5.5 | ST6.3 |
| P | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
| a max | 0.8 | 1.1 | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
| dk max | 4.3 | 5.5 | 6.8 | 7.5 | 8.1 | 9.5 | 10.8 | 11.97 |
| dk min | 4 | 5.2 | 6.44 | 7.14 | 7.74 | 9.14 | 10.37 | 2 |
| f | 0.7 | 0.9 | 1.2 | 1.3 | 1.4 | 1.5 | 1.7 | 3.8 |
| k | 1.3 | 1.7 | 2.1 | 2.3 | 2.5 | 3 | 3.4 | 3 |
| No. | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3.46 |
| M | 2.8 | 3.4 | 4.6 | 4.7 | 4.9 | 5.4 | 7 | 7.4 |
| t min | 1.17 | 1.81 | 1.89 | 2.04 | 2.24 | 2.7 | 3.02 | 4.35 |
| t max | 1.57 | 2.21 | 2.39 | 2.54 | 2.74 | 3.2 | 3.53 | 3.96 |
