AS1252 Structural High Strength Hex Bolts
AS1252 Structural High Strength Hex Bolts are designed for structural steel connections requiring high strength, stability and dependable performance. Manufactured in accordance with AS 1252 requirements, these heavy hex bolts are engineered to provide secure clamping force and reliable fastening performance in critical structural assemblies.
Featuring a heavy hex head design and excellent mechanical properties, AS1252 high strength bolts are commonly used with compatible nuts and washers in steel structures, bridges, infrastructure projects and industrial facilities. Their accurate dimensions and consistent quality make them suitable for applications where safety, durability and long-term connection reliability are essential.
Specification:
AS1252 Structural High Strength Hex Bolts are specified according to AS 1252 requirements, covering important characteristics such as bolt dimensions, thread specifications, head dimensions, mechanical properties and performance requirements. These specifications ensure that the bolts can provide consistent strength and reliable fastening performance in structural steel connections.
The specifications of AS1252 high strength hex bolts include heavy hex head design, metric thread configurations, high tensile strength grades and various surface treatment options to meet different application requirements. Combined with compatible nuts and washers, these bolts are widely used for secure and durable structural assemblies in construction and engineering projects.
| Product name | AS1252 HEX BOLT |
|---|---|
| Diameter | M12-M64 |
| Length | 30mm-500mm |
| Thread | Coarse |
| Head Type | Large Hex Head |
| Class | 8.8 |
| Manufacturing Process | wire drawing, cold heading/hot forging, thread rolling, heat treatment, surface treatment |
| Surface treatment | Hot-Dip Galvanized |
| Application Industry | Construction/Machinery/Automotive/Infrastructure/Electrical and Electronics/Furniture/Marine and Offshore |
Mechanical property:
| Mechanical or physical property | |||
|---|---|---|---|
| Tensile strength, Rm, MPa | nom. | 800 | 800 |
| min. | 800 | 830 | |
| Stress at 0,2 % nonproportional elongation, R p0,2, MPa | nom. | 640 | 640 |
| min. | 640 | 660 | |
| Percentage elongation after fracture for machined test pieces, A, % | min. | 12 | 12 |
| Percentage reduction of area after fracture for machined test pieces, Z, % | min. | 52 | |
| Vickers hardness, HV F W 98 N | min. | 250 | 255 |
| max. | 320 | 335 | |
| Rockwell hardness, HRC | min. | 22 | 23 |
| max. | 32 | 34 | |
The materials and mechanical properties of high-strength steel bolts shall be as given in AS/NZs 4291.1 for property class 8.8.
Surface treatment:
Surface finish Unless otherwise specified, high-strength steel bolts shall be supplied, hot-dip galvanized in accordance with AS 1214. Uncoated bolts shall be in the dull black as heat-treated condition.
- RELATED BOLTS LISTS:
- HEX BOLTS
- HEAVY HEX BOLTS
- DIN931 HEX BOLTS
- DIN6914 HEX BOLTS
- ASME B 18.2.1 HEX BOLTS
- A325 HEAVY HEX BOLTS
- A490 HEAVY HEX BOLTS
- RELATED NUTS LIST:
- HEX NUTS
- HEAVY HEX NUTS
- ISO4032 HEX NUTS
- DIN934 HEX NUTS
- A194 HEAVY HEX NUTS
- A563 HEAVY HEX NUTS
- THREADED ROD LIST:
- DIN975 THREADED RODS
- A193 B7 STUD BOLTS

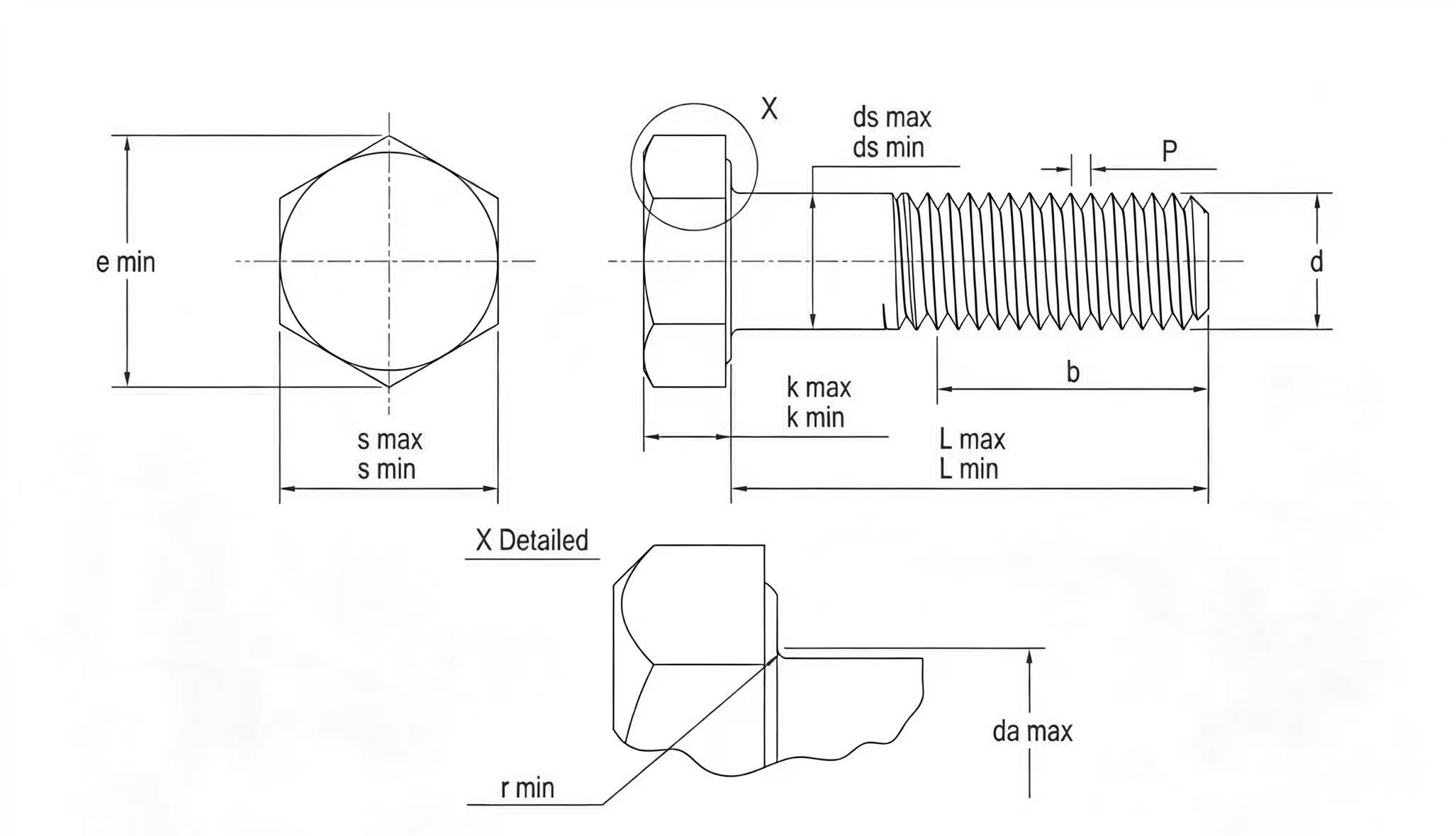

Dimension Chart:
The dimension chart of AS1252 Structural High Strength Hex Bolts provides detailed information on the standard dimensions of these high strength structural fasteners, including nominal diameter, thread specifications, head dimensions, across flats and bolt length. Accurate dimensional control is essential to ensure proper fit and reliable performance in structural steel connections.
| Mon | M16 | M20 | M22 | M24 | M27 | M30 | M36 |
| P | 2 | 2.5 | 2.5 | 3 | 3 | 3.5 | 4 |
| da max | 18.7 | 23.24 | 25.24 | 27.64 | 31.24 | 34.24 | 41 |
| ds max | 16.7 | 20.84 | 22.84 | 24.84 | 27.84 | 30.84 | 37 |
| ds min | 15.3 | 19.16 | 21.16 | 23.16 | 26.16 | 29.16 | 35 |
| e min | 29.56 | 37.29 | 39.55 | 45.2 | 50.85 | 55.37 | 66.44 |
| k max | 10.75 | 13.4 | 14.9 | 15.9 | 17.9 | 19.75 | 23.55 |
| k min | 9.25 | 11.6 | 13.1 | 14.1 | 16.1 | 17.65 | 21.45 |
| r min | 0.6 | 0.8 | 0.8 | 1 | 1.2 | 1.2 | 1.5 |
| s max | 27 | 34 | 36 | 41 | 46 | 50 | 60 |
| s min | 26.16 | 33 | 35 | 40 | 45 | 49 | 58.8 |
Quality Control of AS1252 hex bolts:
In a world where connections matter, Ningbo Teng Qi Fasteners is more than just a hex bolts supplier and manufacturer. We are architects of stability, builders of relationships, and champions of your success. From skyscrapers that reach for the sky to machines that power industries, our hex bolts form the backbone of progress. When you choose Ningbo Teng Qi Fasteners, you choose unwavering quality, exceptional service, and a partner who understands that every bolt holds a piece of your vision.
| Control Method | Detail |
|---|---|
| Material Inspection: | Verify the material's composition, heat treatment, and quality upon receipt. Conduct metallurgical analysis to ensure the material properties meet the standards. |
| Process Control: | Implement strict process control measures for heat treatment, machining, threading, and any other manufacturing steps. Maintain consistent process parameters to ensure uniform quality. |
| Inspection Points: | Introduce inspection points at various stages of manufacturing to check for defects, dimensions, and quality. Inspect threading, dimensions, surface finish, and other critical parameters. |
| Sampling and Testing: | Regularly sample products for testing, such as tensile testing, hardness testing, and metallurgical analysis, to ensure they meet the required specifications. |
| Thread Inspection: | Thoroughly inspect threading using proper thread gauges to ensure accurate dimensions and fit with mating components. |
| Traceability: | Implement a traceability system to track each fasteners journey from raw material to final product. This aids in accountability and recalls if necessary. |
