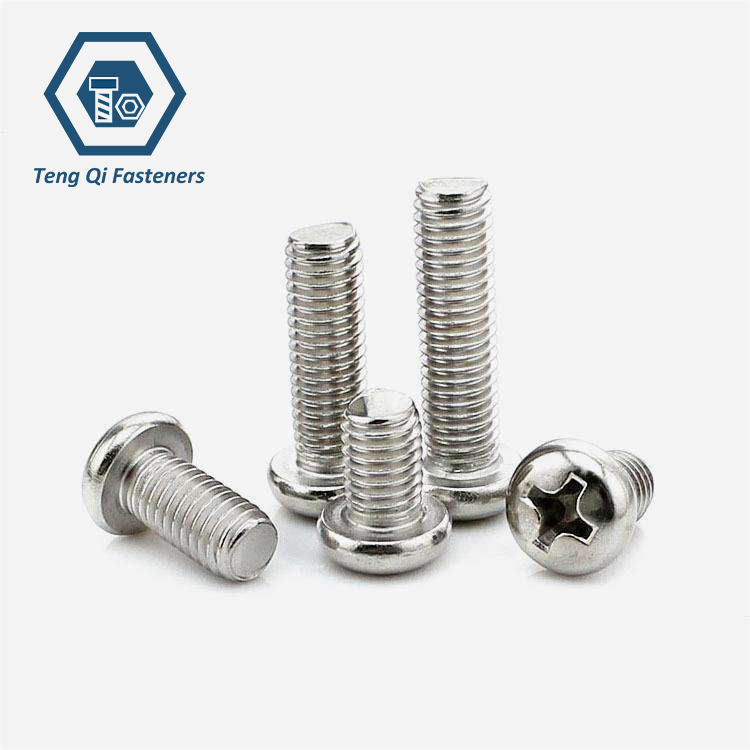

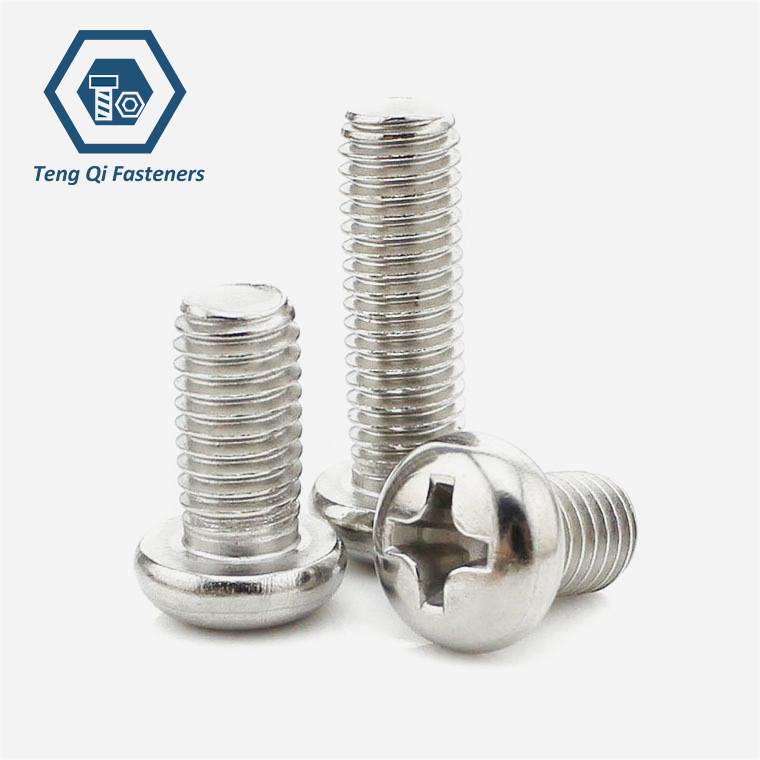

Pan Head Screws with Cross Recess
Pan head screws with cross recess feature a rounded head with a flat bearing surface and a cross-shaped drive that allows convenient installation using a compatible screwdriver. The pan head provides a neat, slightly raised profile above the fastening surface, while the cross recess supports efficient assembly in a wide range of applications. These screws are commonly used in machinery, electrical equipment, metal components, and general industrial assemblies where reliable fastening and a clean finished appearance are required.
We supply pan head screws with cross recess in various sizes, materials, and surface finishes to meet different application requirements. Our manufacturing capabilities include cold heading, thread rolling, and precision machining, supported by dimensional inspection and quality control throughout production. We offer metric and inch-series options, including products manufactured with reference to DIN 7985 and ASME B18.6.3, as well as customized specifications based on customer drawings and technical requirements.
Specification:
| Item | Metric Pan Head Screws with Cross Recess | Inch Pan Head Screws with Cross Recess |
|---|---|---|
| Size Range | M1.6-M10 | 2#-1/2" |
| Thread | ISO Metric Coarse,Fine Thread | UNC,UNF |
| Thread Standard | ISO 68-1,ISO 965 | ASME B1.1 |
| Thread Class | 6g | 2A |
| Material | Cabon Steel,Alloy Steel,Stainless Steel | Cabon Steel,Alloy Steel,Stainless Steel |
| Steel Property Class | ISO 898-1 | ASTM F835 |
| Stainless Steel Class | ISO3506-1 | ASTM F879 |
| Surface Treatment | Black Oxidation, Zinc Plated, HDG, Dacromet, Bright Finish,Passivation | |
| Inspection | Dimension,Thread,Mechanical Proeprty,Coating | |
- RELATED SCREW LISTS:
- Countersunk Head Torx Screw
- Button Round Head Torx Screw
- Cylindrical Head Torx Screw
- Countersunk Head Torx Screw with Pin
- Cylindrical Head Torx Screw with Pin
- Hexagon Socket Countersunk Head Cap Screw
- Hexagon Socket Button Head Screws
- Hexagon Socket Head Cap Screw
- Flat Countersunk Head Screw with Cross Recess
- Pan Head Screw with Cross Recess
- Slotted Countersunk Head Screw
Dimension Standard:
DIN7985 Pan Head Screw
DIN 7985 specifies the dimensions of cross recessed pan head screws in metric sizes. The dimensional specifications cover key features such as thread diameter, thread length, head diameter, and head height, helping ensure consistent sizing and compatibility with mating components.
ASME B18.6.3 Pan Head Screw
ASME B18.6.3 covers the dimensions of inch-series Phillips pan head machine screws. The standard defines key dimensional requirements, including screw diameter, length, head dimensions, and cross recess specifications, for selecting suitable fasteners for inch-based applications.
