ISO7380 Hexagon Socket Button Head Screws
ISO 7380 Hexagon Socket Button Head Screws are chosen when the fastening point needs to remain functional without giving the assembly the pronounced appearance of a conventional hexagon head or tall socket head. Their rounded button head creates a smoother transition above the surface of the component, while the recessed hexagon socket keeps the drive interface within the head rather than adding an external tool profile. The result is a fastening point that combines a finished appearance with straightforward mechanical installation.
The shape of the button head also makes ISO 7380 different from a standard cylindrical socket head cap screw. Instead of relying on a taller head for heavy-duty clamping, the design provides a compact, rounded head suited to exposed joints, panels, covers, brackets, guards, and assembled components where the fastener remains visible after installation. The internal hexagon drive allows the screw to be tightened from the head, while the standardized geometry provides consistent fit and repeatable assembly across production batches. Material selection allows the same button head design to be adapted to different service conditions. Carbon or alloy steel versions can be selected for general mechanical assemblies where strength and cost are important, while stainless steel versions are suitable when the fastening point is exposed to moisture or corrosive surroundings. This combination of a rounded external profile, recessed drive, and standardized construction makes ISO 7380 a useful option when both the mechanical function and finished appearance of the fastening point matter.
Specification:
ISO 7380 Hexagon Socket Button Head Screws are specified by the geometry of the button head, internal hexagon drive, threaded shank, and applicable dimensional requirements. The rounded head profile determines the external envelope of the fastener, while the internal hexagon size defines the compatible installation tool. The threaded portion is produced to the specified metric thread dimensions to ensure compatibility with standard mating threads.
For different mechanical and environmental requirements, ISO 7380 screws can be supplied in carbon steel, alloy steel, or stainless steel grades. Common steel property classes include 8.8, 10.9, and 12.9, while stainless steel options such as A2-70 and A4-70 can be selected where corrosion resistance is required. Depending on the material and application, surface finishes may include plain, black oxide, zinc plating, zinc flake, or other specified coatings. Diameter, length, head dimensions, socket size, material grade, and finish can be controlled according to the applicable ISO specification and customer requirements.
| Item | Specification |
|---|---|
| Standard | ISO7380 |
| Product Type | Hexagon Socket Button Head Screw |
| Head Type | Button Head |
| Drive | Internal Hexagon Socket |
| Thread Type | Metric Coarse |
| Thread | M3-M16 |
| Material | Carbon Steel,Alloy Steel,Stainless Steel |
| Surface Treatment | Plain,Black Oxidation,Zinc Plated,Dacromet,Hdg,Bright Finish,Passivation |
Dimension Chart of ISO7380 Hexagon Socket Button Head Screws:
The ISO 7380 dimension chart provides the key measurements needed to select the appropriate button head screw for a specific joint. The nominal diameter and screw length determine the threaded engagement, while the head diameter and head height define the amount of space occupied above the assembled surface. These dimensions are particularly relevant when the screw head remains exposed and its external profile forms part of the finished assembly.

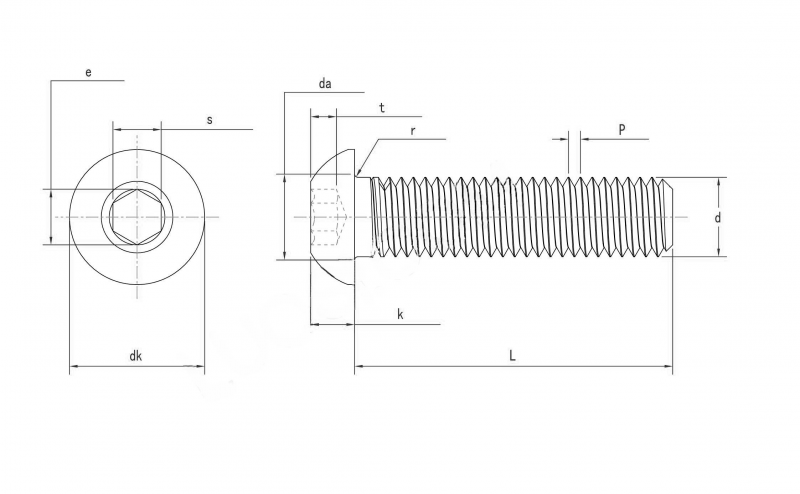

Key dimensions include the nominal thread diameter (d), screw length (l), button head diameter (dk), head height (k), and internal hexagon socket size (s). The socket dimensions should be checked against the selected Allen key or hex bit, while the head diameter and height can be compared with the surrounding component geometry to prevent interference. Reviewing these dimensions together allows engineers and purchasers to select an ISO 7380 screw that provides suitable thread engagement, correct tool compatibility, and an appropriate finished head profile.
| Thread Diameter | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 |
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 |
| da max | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 17.7 |
| dk max | 5.7 | 7.6 | 9.5 | 10.5 | 14 | 17.5 | 21 | 28 |
| dk min | 5.4 | 7.24 | 9.14 | 10.07 | 13.57 | 17.07 | 20.48 | 27.48 |
| e min | 2.303 | 2.873 | 3.443 | 4.583 | 5.723 | 6.863 | 9.149 | 11.429 |
| k max | 1.65 | 2.2 | 2.75 | 3.3 | 4.4 | 5.5 | 6.6 | 8.8 |
| k min | 1.4 | 1.95 | 2.5 | 3 | 4.1 | 5.2 | 6.24 | 8.44 |
| r min | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 |
| s max | 2.08 | 2.58 | 3.08 | 4.095 | 5.14 | 6.14 | 8.175 | 10.175 |
| s min | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 |
| t min | 1.04 | 1.3 | 1.56 | 2.08 | 2.6 | 3.12 | 4.16 | 5.2 |
