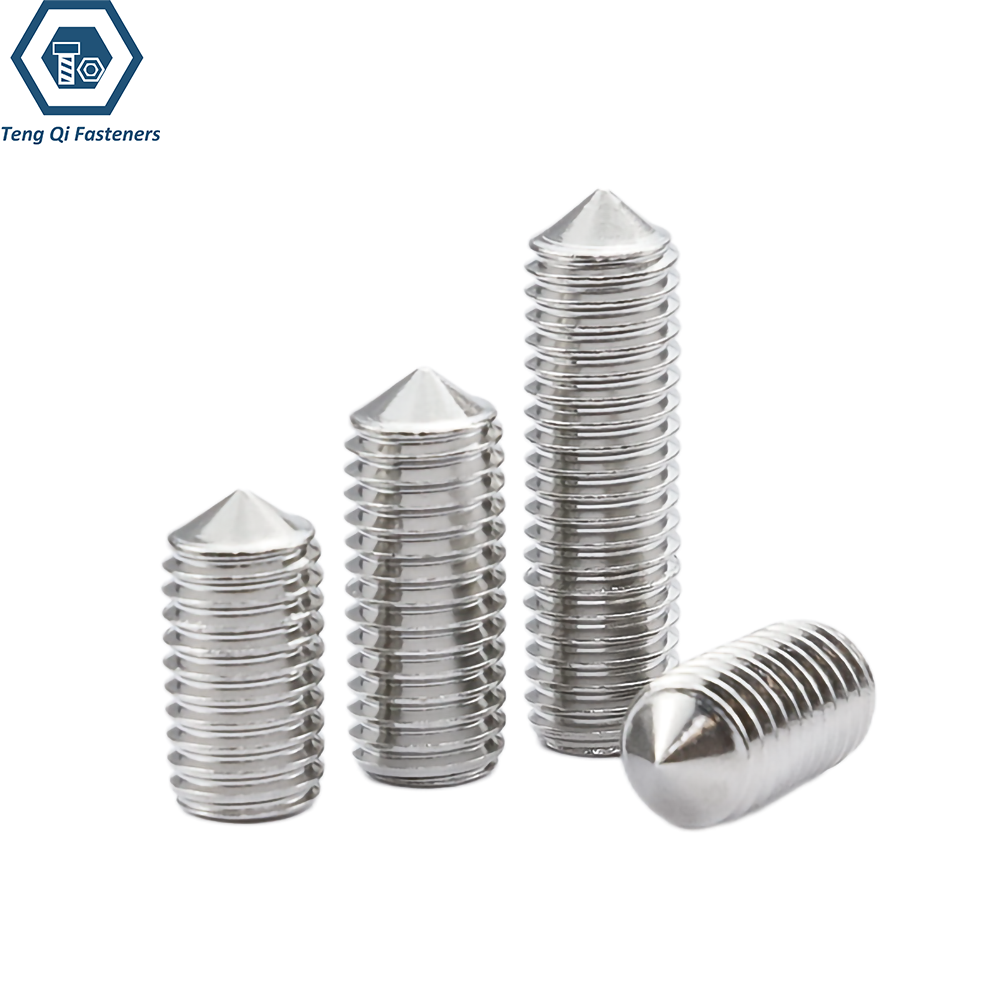

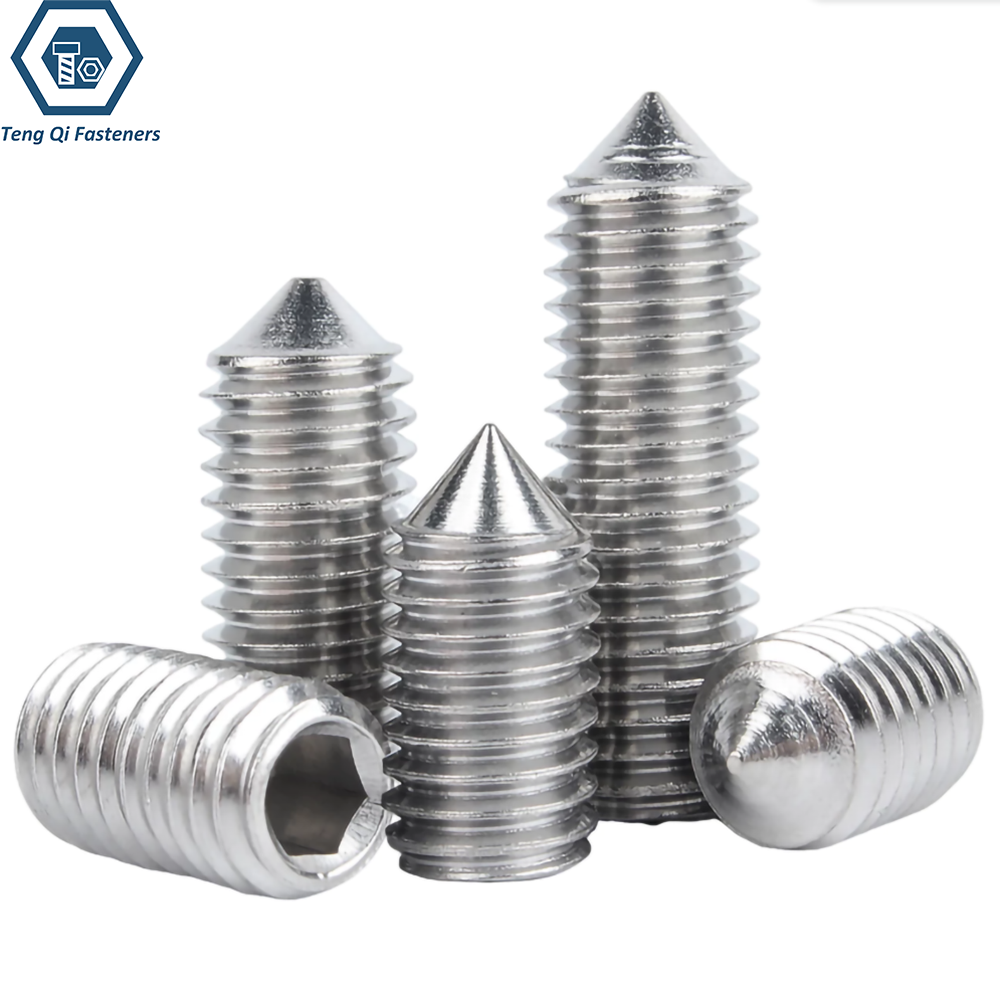

ASME B18.3 Cone Point Set Socket Screws
ASME B18.3 cone point socket set screws have a tapered, cone-shaped tip that can engage with a preformed indentation in a mating component. This design helps maintain the relative position of assembled parts and is particularly useful in applications where accurate positioning and resistance to lateral movement are important. With an internal hex drive, these screws can be installed in confined spaces where conventional external drive fasteners may be less convenient.
We supply cone point socket set screws for mechanical assemblies, fixtures, shafts, and adjustment mechanisms. Available options can include different thread sizes, lengths, materials, and surface finishes to suit specific design requirements. Our manufacturing processes include cold heading, thread rolling, and dimensional inspection to support consistent product quality across production batches.
Specification:
| Item | Specification |
|---|---|
| Standard | ASME B18.3 |
| Product Type | Cone Point Set Socket Screws |
| Drive Type | Hex Socket |
| Point Tppe | Cone Point |
| Thread Standard | ASME B1.1 Unified Inch Screw Threads |
| Thread | UNC,UNF |
| Thread Tolerance | 2A |
| Size Range | #0-2" |
| Surface Treatment | Black Oxidation,Zinc Plated,Bright Finish,Passivation |
| Mechanical Property(Steel) | ASTM F912 |
| Mechanical Property(Stainless Steel) | ASTM F880 |

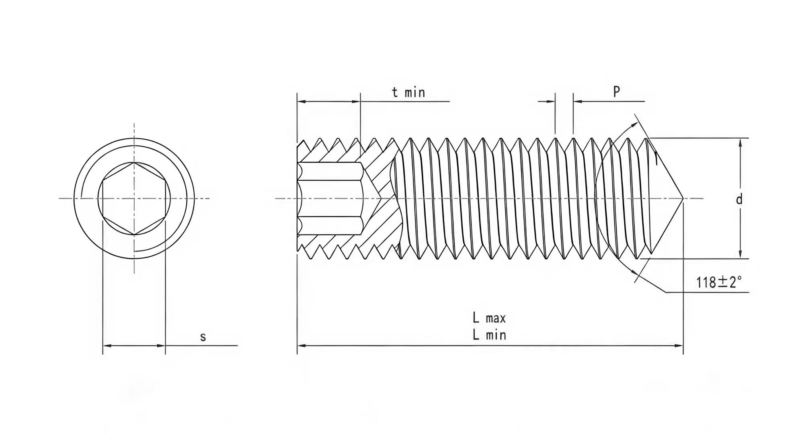

Dimension Chart of ASME B18.3 Cone Point Set Socket Screws:
| Mon | #0 | #1 | #2 | #3 | #4 | #5 | #6 | #8 | #10 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 | 1-3/4 | 2 |
| P | 80 | 64 | 56 | 48 | 40 | 40 | 32 | 32 | 24 | 20 | 18 | 16 | 14 | 13 | 11 | 10 | 9 | 8 | 7 | 7 | 6 | 6 | 5 | 4.5 |
| s | 0.028 | 0.035 | 0.035 | 0.05 | 0.05 | 0.062 | 0.062 | 0.078 | 0.094 | 0.125 | 0.156 | 0.188 | 0.219 | 0.25 | 0.312 | 0.375 | 0.5 | 0.562 | 0.562 | 0.625 | 0.625 | 0.75 | 1 | 1 |
| t min | 0.05 | 0.06 | 0.06 | 0.07 | 0.07 | 0.08 | 0.08 | 0.09 | 0.1 | 0.125 | 0.156 | 0.188 | 0.219 | 0.25 | 0.312 | 0.375 | 0.5 | 0.562 | 0.562 | 0.625 | 0.625 | 0.75 | 1 | 1 |
- RELATED SCREWS:
- SET SCREWS
- ASME B18.3 Flat Point Set Screws
- ASME B18.3 Oval Point Socket Set Screws
- ASME B18.3 Cup Point Socket Set Screw
- ASME B18.3 Half Dog Point Spline Socket Set Screws
- DIN913 Flat Point Set Screws
- DIN914 Cone Point Set Screws
- DIN915 Dog Point Set Screws
- DIN916 Cup point Socket Set Screws
Mechanical Property:
ASTM F912 — Alloy Steel Cone Point Set Screws
ASTM F912 specifies the requirements for quenched and tempered alloy steel socket set screws, including hardness, torque, and torsional strength. The screws have a hardness range of 45–53 HRC and correspond to property class 45H under ISO 898-5. They are intended primarily for compression applications. The following table summarizes the relevant mechanical property requirements for alloy steel cone point set screws.
ASTM F880 — Stainless Steel Cone Point Set Screws
ASTM F880 covers austenitic stainless steel socket set screws and specifies requirements for material composition, torque performance, hardness, and corrosion resistance. These requirements help evaluate the suitability of cone point set screws for applications where corrosion resistance and reliable installation performance are important.
