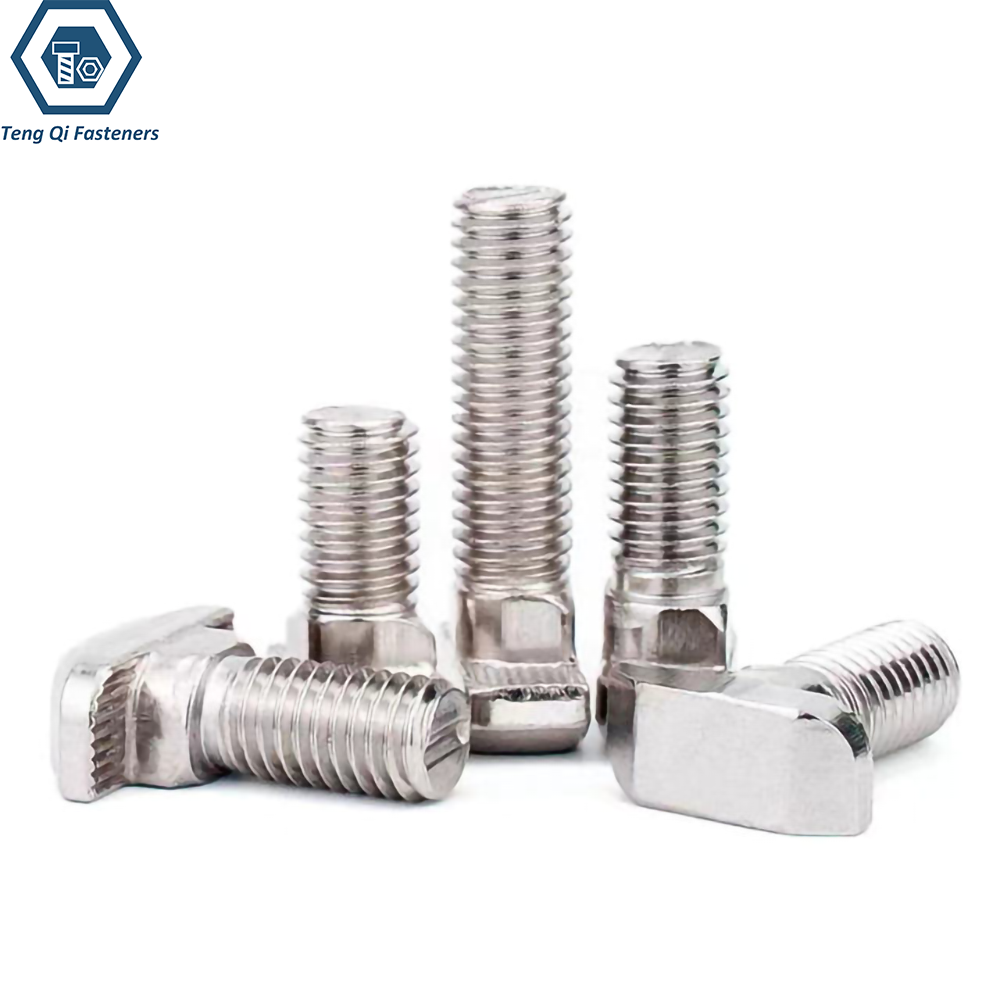

Aluminum Profile T-Bolts
Aluminum Profile T-Bolts are stainless steel fasteners designed for secure and flexible connections in aluminum extrusion and T-slot framing systems. Our T-bolts are primarily manufactured from stainless steel 304, providing good corrosion resistance, durability, and reliable mechanical performance for a wide range of industrial and structural applications. Common property classes include A2-50 and A2-70, allowing users to select the appropriate strength level according to their specific fastening requirements.
The T-shaped head is designed to fit into the T-slot of aluminum profiles, allowing the bolt to be inserted and positioned along the profile without removing other components. This makes stainless steel T-bolts convenient for assembling modular frames, machine guards, workstations, conveyors, equipment supports, and other aluminum extrusion structures. Various thread sizes, lengths, and head dimensions are available for different profile configurations, including commonly used 20, 30, 40, and 45 series aluminum profiles. Customized dimensions, materials, surface finishes, and packaging can also be provided according to customer drawings and application requirements.
Specification:
| Item | Specification |
|---|---|
| Product Type | Aluminum Profile T-Bolts/T-Slot Bolts |
| Size Range | M5-M10 |
| Profile Series | 20,30,40,45 Series |
| Material | 304 Stainless Steel |
| Strength Grade | A2-50,A2-70 |
| Mechanical Standard | ISO 3506-1 |
| Thread | Metric Coarse |
| Thread Standard | ISO261,ISO965 |
| Surface Treatment | Bright Finish,Passivation |
| Inspection | Dimensions, Thread,Mechanical Property,Coating |

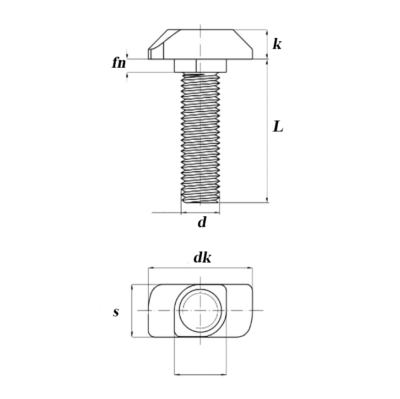

Dimension Chart of Aluminum Profile T-Bolts:
| Thread Diameter(d) | M5x0.8 | M6x1 | M8x1.25 | M8x1.25 | M8x1.25 | M10x1.5 |
| Aluminum Profile Standard | 20 | 30 | 30 | 40 | 45 | 45 |
| s | 5.8-6 | 7.8-8 | 7.7-8 | 7.8-8.1 | 8.3-8.6 | 9.9-10.1 |
| dk | 9.9-10.1 | 15.3-15 | 15.3-15 | 17.7-18 | 18.8-19 | 18.8-19 |
| k | 3.4-3.7 | 4.5-5 | 4.5-5 | 4.8-5.1 | 5.4-5.7 | 5.4-5.7 |
| fn | 1.1-1.3 | 1.4-1.7 | 1.4-1.7 | 3.8-4.2 | 3.8-4.2 | 3.8-4.2 |
